PL/SQL Datatypes

Like--but oh how different! --William Wordsworth

Every constant, variable, and parameter has a datatype (or type), which specifies a storage format, constraints, and valid range of values. PL/SQL provides a variety of predefined datatypes. For instance, you can choose from integer, floating point, character, Boolean, date, collection, reference, and LOB types. In addition, PL/SQL lets you define your own subtypes. This chapter covers the basic types used frequently in PL/SQL programs. Later chapters cover the more specialized types.

Predefined Datatypes

A scalar type has no internal components. A composite type has internal components that can be manipulated individually. A reference type holds values, called pointers, that designate other program items. A LOB type holds values, called lob locators, that specify the location of large objects (graphic images for example) stored out-of-line.

Figure 3-1 shows the predefined datatypes available for your use. The scalar types fall into four families, which store number, character, Boolean, and date/time data, respectively.

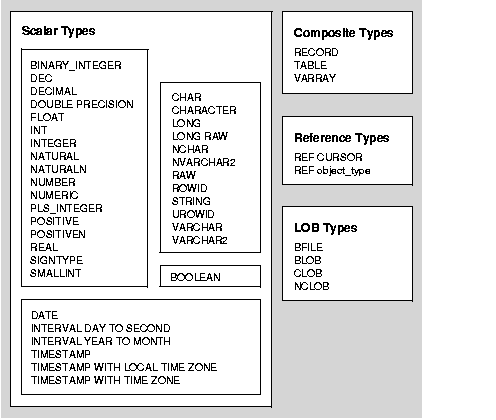

Figure 3-1 Built-in Datatypes

Text description of the illustration pls81006_builtin_datatypes.gif

Number Types

Number types let you store numeric data (integers, real numbers, and floating-point numbers), represent quantities, and do calculations.

BINARY_INTEGER

You use the BINARY_INTEGER datatype to store signed integers. Its magnitude range is -2**31 .. 2**31. Like PLS_INTEGER values, BINARY_INTEGER values require less storage than NUMBER values. However, most BINARY_INTEGER operations are slower than PLS_INTEGER operations.

BINARY_INTEGER Subtypes

A base type is the datatype from which a subtype is derived. A subtype associates a base type with a constraint and so defines a subset of values. For your convenience, PL/SQL predefines the following BINARY_INTEGER subtypes:

NATURAL

NATURALN

POSITIVE

POSITIVEN

SIGNTYPE

The subtypes NATURAL and POSITIVE let you restrict an integer variable to non-negative or positive values, respectively. NATURALN and POSITIVEN prevent the assigning of nulls to an integer variable. SIGNTYPE lets you restrict an integer variable to the values -1, 0, and 1, which is useful in programming tri-state logic.

NUMBER

You use the NUMBER datatype to store fixed-point or floating-point numbers. Its magnitude range is 1E-130 .. 10E125. If the value of an expression falls outside this range, you get a numeric overflow or underflow error. You can specify precision, which is the total number of digits, and scale, which is the number of digits to the right of the decimal point. The syntax follows:

NUMBER[(precision,scale)]


To declare fixed-point numbers, for which you must specify scale, use the following form:

NUMBER(precision,scale)


To declare floating-point numbers, for which you cannot specify precision or scale because the decimal point can "float" to any position, use the following form:

NUMBER


To declare integers, which have no decimal point, use this form:

NUMBER(precision) -- same as NUMBER(precision,0)


You cannot use constants or variables to specify precision and scale; you must use integer literals. The maximum precision of a NUMBER value is 38 decimal digits. If you do not specify precision, it defaults to 38 or the maximum supported by your system, whichever is less.

Scale, which can range from -84 to 127, determines where rounding occurs. For instance, a scale of 2 rounds to the nearest hundredth (3.456 becomes 3.46). A negative scale rounds to the left of the decimal point. For example, a scale of -3 rounds to the nearest thousand (3456 becomes 3000). A scale of 0 rounds to the nearest whole number. If you do not specify scale, it defaults to 0.

NUMBER Subtypes

You can use the following NUMBER subtypes for compatibility with ANSI/ISO and IBM types or when you want a more descriptive name:

DEC

DECIMAL

DOUBLE PRECISION

FLOAT

INTEGER

INT

NUMERIC

REAL

SMALLINT

Use the subtypes DEC, DECIMAL, and NUMERIC to declare fixed-point numbers with a maximum precision of 38 decimal digits.

Use the subtypes DOUBLE PRECISION and FLOAT to declare floating-point numbers with a maximum precision of 126 binary digits, which is roughly equivalent to 38 decimal digits. Or, use the subtype REAL to declare floating-point numbers with a maximum precision of 63 binary digits, which is roughly equivalent to 18 decimal digits.

Use the subtypes INTEGER, INT, and SMALLINT to declare integers with a maximum precision of 38 decimal digits.

PLS_INTEGER

You use the PLS_INTEGER datatype to store signed integers. Its magnitude range is -2**31 .. 2**31. PLS_INTEGER values require less storage than NUMBER values. Also, PLS_INTEGER operations use machine arithmetic, so they are faster than NUMBER and BINARY_INTEGER operations, which use library arithmetic. For efficiency, use PLS_INTEGER for all calculations that fall within its magnitude range.

Although PLS_INTEGER and BINARY_INTEGER have the same magnitude range, they are not fully compatible. When a PLS_INTEGER calculation overflows, an exception is raised. However, when a BINARY_INTEGER calculation overflows, no exception is raised if the result is assigned to a NUMBER variable.

Because of this small semantic difference, you might want to continue using BINARY_INTEGER in old applications for compatibility. In new applications, always use PLS_INTEGER for better performance.

Character Types

Character types let you store alphanumeric data, represent words and text, and manipulate character strings.

CHAR

You use the CHAR datatype to store fixed-length character data. How the data is represented internally depends on the database character set. The CHAR datatype takes an optional parameter that lets you specify a maximum size up to 32767 bytes. You can specify the size in terms of bytes or characters, where each character contains one or more bytes, depending on the character set encoding. The syntax follows:

CHAR[(maximum_size [CHAR | BYTE] )]


You cannot use a symbolic constant or variable to specify the maximum size; you must use an integer literal in the range 1 .. 32767.

If you do not specify a maximum size, it defaults to 1. If you specify the maximum size in bytes rather than characters, a CHAR(n) variable might be too small to hold n multibyte characters. To avoid this possibility, use the notation CHAR(n CHAR)so that the variable can hold n characters in the database character set, even if some of those characters contain multiple bytes. When you specify the length in characters, the upper limit is still 32767 bytes. So for double-byte and multibyte character sets, you can only specify 1/2 or 1/3 as many characters as with a single-byte character set.

Although PL/SQL character variables can be relatively long, the maximum width of a CHAR database column is 2000 bytes. So, you cannot insert CHAR values longer than 2000 bytes into a CHAR database column.

You can insert any CHAR(n) value into a LONG database column because the maximum width of a LONG column is 2**31 bytes or two gigabytes. However, you cannot retrieve a value longer than 32767 bytes from a LONG column into a CHAR(n) variable.

When you do not use the CHAR or BYTE qualifiers, the default is determined by the setting of the NLS_LENGTH_SEMANTICS initialization parameter. When a PL/SQL procedure is compiled, the setting of this parameter is recorded, so that the same setting is used when the procedure is recompiled after being invalidated.

Note: Semantic differences between the CHAR and VARCHAR2 base types are discussed in Appendix B.

CHAR Subtype

The CHAR subtype CHARACTER has the same range of values as its base type. That is, CHARACTER is just another name for CHAR. You can use this subtype for compatibility with ANSI/ISO and IBM types or when you want an identifier more descriptive than CHAR.

LONG and LONG RAW

You use the LONG datatype to store variable-length character strings. The LONG datatype is like the VARCHAR2 datatype, except that the maximum size of a LONG value is 32760 bytes.

You use the LONG RAW datatype to store binary data or byte strings. LONG RAW data is like LONG data, except that LONG RAW data is not interpreted by PL/SQL. The maximum size of a LONG RAW value is 32760 bytes.

Starting in Oracle9i, LOB variables can be used interchangeably with LONG and LONG RAW variables. Oracle recommends migrating any LONG data to the CLOB type, and any LONG RAW data to the BLOB type. See "LOB Types" for more details.

You can insert any LONG value into a LONG database column because the maximum width of a LONG column is 2**31 bytes. However, you cannot retrieve a value longer than 32760 bytes from a LONG column into a LONG variable.

Likewise, you can insert any LONG RAW value into a LONG RAW database column because the maximum width of a LONG RAW column is 2**31 bytes. However, you cannot retrieve a value longer than 32760 bytes from a LONG RAW column into a LONG RAW variable.

LONG columns can store text, arrays of characters, or even short documents. You can reference LONG columns in UPDATE, INSERT, and (most) SELECT statements, but not in expressions, SQL function calls, or certain SQL clauses such as WHERE, GROUP BY, and CONNECT BY. For more information, see Oracle9i SQL Reference.

Note: In SQL statements, PL/SQL binds LONG values as VARCHAR2, not as LONG. However, if the length of the bound VARCHAR2 exceeds the maximum width of a VARCHAR2 column (4000 bytes), Oracle converts the bind type to LONG automatically, then issues an error message because you cannot pass LONG values to a SQL function.

RAW

You use the RAW datatype to store binary data or byte strings. For example, a RAW variable might store a sequence of graphics characters or a digitized picture. Raw data is like VARCHAR2 data, except that PL/SQL does not interpret raw data. Likewise, Oracle Net does no character set conversions when you transmit raw data from one system to another.

The RAW datatype takes a required parameter that lets you specify a maximum size up to 32767 bytes. The syntax follows:

RAW(maximum_size)


You cannot use a symbolic constant or variable to specify the maximum size; you must use an integer literal in the range 1 .. 32767.

The maximum width of a RAW database column is 2000 bytes. So, you cannot insert RAW values longer than 2000 bytes into a RAW column. You can insert any RAW value into a LONG RAW database column because the maximum width of a LONG RAW column is 2**31 bytes. However, you cannot retrieve a value longer than 32767 bytes from a LONG RAW column into a RAW variable.

VARCHAR2

You use the VARCHAR2 datatype to store variable-length character data. How the data is represented internally depends on the database character set. The VARCHAR2 datatype takes a required parameter that specifies a maximum size up to 32767 bytes. The syntax follows:

VARCHAR2(maximum_size [CHAR | BYTE])


You cannot use a symbolic constant or variable to specify the maximum size; you must use an integer literal in the range 1 .. 32767.

Small VARCHAR2 variables are optimized for performance, and larger ones are optimized for efficient memory use. The cutoff point is 2000 bytes. For a VARCHAR2 that is 2000 bytes or longer, PL/SQL dynamically allocates only enough memory to hold the actual value. For a VARCHAR2 variable that is shorter than 2000 bytes, PL/SQL preallocates the full declared length of the variable. For example, if you assign the same 500-byte value to a VARCHAR2(2000 BYTE) variable and to a VARCHAR2(1999 BYTE) variable, the former takes up 500 bytes and the latter takes up 1999 bytes.

If you specify the maximum size in bytes rather than characters, a VARCHAR2(n) variable might be too small to hold n multibyte characters. To avoid this possibility, use the notation VARCHAR2(n CHAR)so that the variable can hold n characters in the database character set, even if some of those characters contain multiple bytes. When you specify the length in characters, the upper limit is still 32767 bytes. So for double-byte and multibyte character sets, you can only specify 1/2 or 1/3 as many characters as with a single-byte character set.

Although PL/SQL character variables can be relatively long, the maximum width of a VARCHAR2 database column is 4000 bytes. So, you cannot insert VARCHAR2 values longer than 4000 bytes into a VARCHAR2 database column.

You can insert any VARCHAR2(n) value into a LONG database column because the maximum width of a LONG column is 2**31 bytes. However, you cannot retrieve a value longer than 32767 bytes from a LONG column into a VARCHAR2(n) variable.

When you do not use the CHAR or BYTE qualifiers, the default is determined by the setting of the NLS_LENGTH_SEMANTICS initialization parameter. When a PL/SQL procedure is compiled, the setting of this parameter is recorded, so that the same setting is used when the procedure is recompiled after being invalidated.

VARCHAR2 Subtypes

The VARCHAR2 subtypes below have the same range of values as their base type. For example, VARCHAR is just another name for VARCHAR2.

STRING

VARCHAR

You can use these subtypes for compatibility with ANSI/ISO and IBM types.

Note: Currently, VARCHAR is synonymous with VARCHAR2. However, in future releases of PL/SQL, to accommodate emerging SQL standards, VARCHAR might become a separate datatype with different comparison semantics. So, it is a good idea to use VARCHAR2 rather than VARCHAR.

Boolean Type

BOOLEAN

You use the BOOLEAN datatype to store the logical values TRUE, FALSE, and NULL (which stands for a missing, unknown, or inapplicable value). Only logic operations are allowed on BOOLEAN variables.

The BOOLEAN datatype takes no parameters. Only the values TRUE, FALSE, and NULL can be assigned to a BOOLEAN variable. You cannot insert the values TRUE and FALSE into a database column. Also, you cannot select or fetch column values into a BOOLEAN variable.

Datetime and Interval Types

The datatypes in this section let you store and manipulate dates, times, and intervals (periods of time). A variable that has a date/time datatype holds values called datetimes; a variable that has an interval datatype holds values called intervals. A datetime or interval consists of fields, which determine its value.

See the original document for more information.

User-Defined Subtypes

Each PL/SQL base type specifies a set of values and a set of operations applicable to items of that type. Subtypes specify the same set of operations as their base type but only a subset of its values. Thus, a subtype does not introduce a new type; it merely places an optional constraint on its base type.

Subtypes can increase reliability, provide compatibility with ANSI/ISO types, and improve readability by indicating the intended use of constants and variables. PL/SQL predefines several subtypes in package STANDARD. For example, PL/SQL predefines the subtypes CHARACTER and INTEGER as follows:

SUBTYPE CHARACTER IS CHAR;
SUBTYPE INTEGER IS NUMBER(38,0); -- allows only whole numbers


The subtype CHARACTER specifies the same set of values as its base type CHAR, so CHARACTER is an unconstrained subtype. But, the subtype INTEGER specifies only a subset of the values of its base type NUMBER, so INTEGER is a constrained subtype.

Defining Subtypes

You can define your own subtypes in the declarative part of any PL/SQL block, subprogram, or package using the syntax

SUBTYPE subtype_name IS base_type[(constraint)] [NOT NULL];


where subtype_name is a type specifier used in subsequent declarations, base_type is any scalar or user-defined PL/SQL datatype, and constraint applies only to base types that can specify precision and scale or a maximum size.

Some examples follow:

DECLARE
 SUBTYPE BirthDate IS DATE NOT NULL; -- based on DATE type
 SUBTYPE Counter IS NATURAL; -- based on NATURAL subtype
 TYPE NameList IS TABLE OF VARCHAR2(10);
 SUBTYPE DutyRoster IS NameList; -- based on TABLE type
 TYPE TimeRec IS RECORD (minutes INTEGER, hours INTEGER);
 SUBTYPE FinishTime IS TimeRec; -- based on RECORD type
 SUBTYPE ID_Num IS emp.empno%TYPE; -- based on column type


You can use %TYPE or %ROWTYPE to specify the base type. When %TYPE provides the datatype of a database column, the subtype inherits the size constraint (if any) of the column. However, the subtype does not inherit other kinds of constraints such as NOT NULL.

Using Subtypes

Once you define a subtype, you can declare items of that type. In the example below, you declare a variable of type Counter. Notice how the subtype name indicates the intended use of the variable.

DECLARE
 SUBTYPE Counter IS NATURAL;
 rows Counter;


The following example shows that you can constrain a user-defined subtype when declaring variables of that type:

DECLARE
 SUBTYPE Accumulator IS NUMBER;
 total Accumulator(7,2);


Subtypes can increase reliability by detecting out-of-range values. In the example below, you restrict the subtype Numeral to storing integers in the range -9 .. 9. If your program tries to store a number outside that range in a Numeral variable, PL/SQL raises an exception.

DECLARE
 SUBTYPE Numeral IS NUMBER(1,0);
 x_axis Numeral; -- magnitude range is -9 .. 9
 y_axis Numeral;
BEGIN
 x_axis := 10; -- raises VALUE_ERROR
 ...
END;

Type Compatibility

An unconstrained subtype is interchangeable with its base type. For example, given the following declarations, the value of amount can be assigned to total without conversion:

DECLARE
 SUBTYPE Accumulator IS NUMBER;
 amount NUMBER(7,2);
 total Accumulator;
BEGIN
 ...
 total := amount;
 ...
END;

Different subtypes are interchangeable if they have the same base type. For instance, given the following declarations, the value of finished can be assigned to debugging:

DECLARE
 SUBTYPE Sentinel IS BOOLEAN;
 SUBTYPE Switch IS BOOLEAN;
 finished Sentinel;
 debugging Switch;
BEGIN
 ...
 debugging := finished;
 ...
END;


Different subtypes are also interchangeable if their base types are in the same datatype family. For example, given the following declarations, the value of verb can be assigned to sentence:

DECLARE
 SUBTYPE Word IS CHAR(15);
 SUBTYPE Text IS VARCHAR2(1500);
 verb Word;
 sentence Text(150);
BEGIN
 ...
 sentence := verb;
 ...
END;

Datatype Conversion

Sometimes it is necessary to convert a value from one datatype to another. For example, if you want to examine a rowid, you must convert it to a character string. PL/SQL supports both explicit and implicit (automatic) datatype conversion.

Explicit Conversion

To convert values from one datatype to another, you use built-in functions. For example, to convert a CHAR value to a DATE or NUMBER value, you use the function TO_DATE or TO_NUMBER, respectively. Conversely, to convert a DATE or NUMBER value to a CHAR value, you use the function TO_CHAR. For more information about these functions, see Oracle9i SQL Reference.

Implicit Conversion

When it makes sense, PL/SQL can convert the datatype of a value implicitly. This lets you use literals, variables, and parameters of one type where another type is expected.

For more information, see the full document.
