Class 17

Microphone

Graded Quiz

You can connect to Gradescope to take weekly graded quiz today during the last 15 minutes of the class.

Once you start the quiz you have 15 minutes to finish it.

You can only take this quiz today.

There is not makeup for the weekly quiz because Gradescope does not permit it.

Readings

If you have the textbook you should read Chapter 6, Files and Exceptions, from Starting Out with Python.

Solution to Homework 6

I have posted a solution to homework 6 here.

Let's take a look.

Homework 8

I have posted homework 8 here.

It is due this Sunday at 11:59 PM.

Midterm Scores

If you believe I have scored one of your Midterm answers incorrectly you can request a rescore for that question on Gradescope.

If your score on the Final is significantly better than your score on the Midterm, I will replace your Midterm grade with that of the Final when calculating your grade for the course.

If you want to discuss how you can improve your grade in this course, come see me during Office Hours.

You do not have to make an appointment to see me during Office Hours, but you may have to wait your turn if I am helping another student.

I want students to pass this course, and will do what I reasonably can to make that happen.

Your Current Standing in This Course

If you want to know your grade as of this moment, send me an email.

In performing this calculation, I will assume that your score on the final exam will be the same as that of you Midterm score.

I can do this only for your grade as of the Midterm.

I can't do this for your grade later in the semester.

Final Exam

The final for this course will take place in this room on Tuesday, December 17th, from 3:00 PM - 6:00 PM.

You will also find this information at the top of the class web page.

Questions

Are there any questions before I begin?

Tips and Examples

Common Exam Mistake - Using Input in Functions

Functions usually get their values from their parameters
You don't need an input statement to get values supplied by parameters
Some students lose points on my exam making this mistake
If a function has the following header
```
def pos_neg_zero(num)
```
You should NOT have an input statement like the one below
```
num = int(input("Number: "))
```

Never Assume Your Code Works

In the American justice system a defendant is presumed innocent ...
until he or she is proven guilty
In other words you are innocent until you have been shown to be guilty
With code the opposite is true
You should always assume your code is not working ...
until you can test it to prove otherwise
This means your work is not done once you have written the code
It is only finished when you can prove it works

Review

Functions Returning Boolean Values

We have seen that a function can return values that are
- Integers
- Floats
- Strings
They can also return boolean values
Such functions are often very simple
They often consist of one line ...

a return statement with boolean expression

# return true if value is between max and min
def in_range(min, max, value):
    return min <= value <= max

Storing Functions in Modules

A module is a file containing definitions of Python functions ...
and assignment statements for variables
To use these functions in a script, you import the module
The filename of the module must
- End in .py
- The module name cannot be a keyword

Attendance

New Material

Files

Programs need data to do their work
We can use the input function to get data from the user
But manual data entry is slow and often inaccurate
Some tasks involve processing a large amount of data
When a large company does its payroll it needs data on every employee ...
which may involve thousands of records
When processing large amount of data we need to use files
A file is simply a linear arrangement of data ...
on some long term storage device
That storage device might be a
- Hard disk
- Flash drive
- CD ROM
- SSD card

Types of Files

All files consist of binary numbers
But those numbers can be interpreted in one of two ways
- Text
- Binary

Consider the following text file

$ cat fruit.txt
grapes
pears
oranges
cranberries
apples
melons
blueberries

The Unix od (octal dump) command shows how this file is stored on disk

$ od -b fruit.txt
0000000 147 162 141 160 145 163 012 160 145 141 162 163 012 157 162 141
0000020 156 147 145 163 012 143 162 141 156 142 145 162 162 151 145 163
0000040 012 141 160 160 154 145 163 012 155 145 154 157 156 163 012 142
0000060 154 165 145 142 145 162 162 151 145 163 012
0000073

The first column is the offset
It is how far the data on the right is from the start of the file
Every column after the first shows the octal value of a byte in the file
Each byte of the file represents a character in Unicode

To see the characters, I can run od with the -c option

od -c fruit.txt
0000000   g   r   a   p   e   s  \n   p   e   a   r   s  \n   o   r   a
0000020   n   g   e   s  \n   c   r   a   n   b   e   r   r   i   e   s
0000040  \n   a   p   p   l   e   s  \n   m   e   l   o   n   s  \n   b
0000060   l   u   e   b   e   r   r   i   e   s  \n
0000073

A binary file, such as a JPEG image also consist of numbers
Consider the JPEG file that holds the following image

When we look at this with od we get

$ od -b square.jpg
0000000   377 330 377 340 000 020 112 106 111 106 000 001 001 000 000 110
0000020   000 110 000 000 377 341 000 200 105 170 151 146 000 000 115 115
0000040   000 052 000 000 000 010 000 004 001 032 000 005 000 000 000 001
...

Trying to interpret it as text gives us garbage

$ od -c square.jpg
0000000  377 330 377 340  \0 020   J   F   I   F  \0 001 001  \0  \0   H
0000020   \0   H  \0  \0 377 341  \0 200   E   x   i   f  \0  \0   M   M
0000040   \0   *  \0  \0  \0  \b  \0 004 001 032  \0 005  \0  \0  \0 001
...

Both files contain binary numbers
But the numbers in the text file represent Unicode characters
They make sense when we view them as text
But the numbers in the JPEG file make no sense when viewed as text
To use a file in Python we have to specify if it is text or binary
Why?
Because text files have a simple structure
Each text file is a collection of lines
A line is a series of characters followed by the newline character, \n
Binary files do not have this structure
We will only be using text files in this course

Identifying a File

You need two pieces of information to identify a file
- Name
- Location
Operating systems have different rules about the characters in a filename
Linux and Unix are case sensitive
This means that memo.txt and MEMO.txt are different file names
Windows is not case sensitive
You cannot have two files with the same name ...
inside this same directory
The location of a file is given by a path
A path is a list of directories
The path tells what directory holds the file
It is a list of directories from some starting point ...
to the directory that holds the file
A pathname is a path ...
followed by the file name
A pathname gives the name and location of a file
So it uniquely specifies each file

Storing Data on a Hard Disk

Every type of storage device has its own way of storing data
Hard disks consists of rapidly spinning disks
The disks contain information in the form of magnetic fields
The disk is made up of material that can be magnetized
This material consists of millions of small regions
In each region the magnetic field points in some direction
Either up or down
Each of these regions represents a binary digit called a bit
One direction means 0 and the other means 1

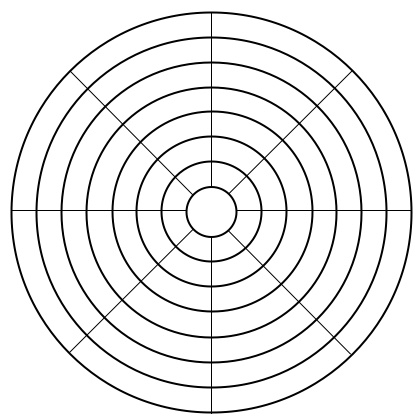

The surface of the disk is broken up into rings called tracks
And each track is broken up into sectors

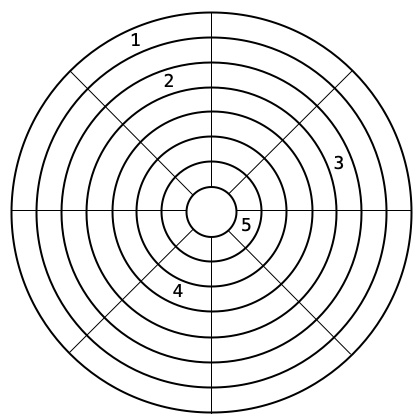

Most files consist of many sectors
The sectors do not have to be one right after the other
The sectors are usually scattered all over the disk

Can anyone guess why?

Files and the Kernel

A file can be scattered over different sectors of the disk
So how does the operating system know where to get the different parts?
It doesn't have to
That's the job of the device driver
The device driver is software that allows a device to talk to the computer
Device drivers must be provided by the manufacturer
If you install a new printer on your machine ...
you must select the right device driver to talk to it
At the core of every operating system is a program called the kernel
The kernel handles all interactions with hardware
When a program needs a file it must ask the kernel ...
to set up a connection to the file
The kernel does not have to worry about where the file is stored on the disk
That's the job of the device driver
This division of labor makes everything work better
It also means that you can work with files on many different devices

Working with a File in Python

All operations inside a computer take place in RAM
RAM is working memory
A file lives on a some external storage device ...
like a hard disk or thumb drive
But any interactions with the file takes place in RAM
RAM is fast and expensive
But external storage is slower and cheap
RAM space is limited ...
and files can be very large
So you usually only have a small part of a file in RAM ...
at any one time
The kernel sets aside a section of RAM to work with the file
This section holds the part of the file that has been read into RAM ...
and various other pieces of bookkeeping information
Like the location of the last line read from disk

Objects

Sometimes you need several pieces of information about one thing
If we were writing software for a car dealer we would need to know
- Manufacturer
- Model
- Year
- Color
You would need many variables and functions to work with this data
These variables and functions might be scattered over different parts of the code
This could become unwieldy ...
and make the code hard to understand and maintain
Objects were created to deal with this problem
An object is region of RAM ...
that contains all the data about some thing
It also has all the functions that deal with this data
The data is contained in variables inside the object
The functions that work on this data are called methods
Objects have no name
They only have a location in RAM
We create an object by using a special function
This function returns a pointer to the object in RAM
We store this value of this pointer in a variable ...
and we use this variable to work with the object

Accessing the Data in Files

There are two ways that you can get the data in a file
- Sequential access
- Direct access
In sequential access the interpreter starts at the beginning of the file ...
and travels through the file executing each statement ...
until it gets to the end
Sequential access is how a tape recorder works
In direct access you go directly to the part of the file that holds the data
This is like getting the number of a book from the library card index ...
and going directly to the shelf that holds the book
We will only be using sequential access in this class

Opening a File

To work with a file we have to create a file object
We do this using the built-in function open
The open function does two things
- It creates a file object
- It returns a reference to the object
The reference is a memory location that is stored in a variable
We use the variable to work with the object
The picture in memory looks like this

Here is the format for using the open function
```
FILE_VARIABLE = open(FILENAME, MODE)
```
FILE_VARIABLE is the name of the variable that holds the reference
FILENAME is a string giving the name and location of the file
MODE is a letter specifying what we want to do with the file

The three most commonly used access modes are

Mode	Description
"r"	Open a file for reading
"w"	Open a file for writing
"a"	Open a file for writing to the end of the file

The a in the last mode stands for "append"
Opening an existing file in this mode does not destroy its content
Instead, new lines will be added to the bottom of the file
If a file is open for reading it cannot be changed
If you try to open a file for reading ...
and the file does not exist ...
you will get an error
If you try to open a file for writing or appending ...
that does not exists ...
the kernel will create the file for you
If you open a file for writing that already exists ...
its contents will be replaced by whatever you write to it
The mode argument to the open command must be given as a string
To open the file memo.txt for reading, I would write
```
file = open("memo.txt", "r")
```
Not
```
file = open("memo.txt", r)
```

Specifying the Location of a File

A file is identified by two pieces of information
- Its name
- Its location
If the file is in your current directory things are simple
All you need is the name of the file
If I open a file for writing with the following statement
```
test_file = open("test.txt", "w")
```
the Python interpreter will ask the kernel ...
to look for the file test.txt in my current directory
To open the file test.txt in my /home/ghoffman directory on pe15 I would write
```
test_file = open("/home/ghoffman/tmp/test.txt", "w")
```
To open the file in C:\Users\ghoffman of a Windows machine I would write
```
test_file = open(r"C:\Users\ghoffman\test.txt", "w")
```
Note the r before the pathname
The r stands for raw
The problem is that Windows uses the backslash character, \, ...
to mark the end if a directory name
Python uses this character in an escape sequence
The r before the pathname string ...
tells Python to ignore the special meaning of \
We will only use relative pathnames in this class

Writing Data to a File

Objects contain values ...
and the functions that work with those values
The functions inside objects are called methods
To call a method you must use dot notation
Dot notation for methods has the following format
```
OBJECT_VARIABLE.METHOD_NAME
```
To write data to a file we must first open it for writing
```
teams_file = open("teams.txt", "w")
```
This will give you a file object pointed to by the variable teams_file
Now we can use the write method of this file object ...

to send some text to the file

$ cat write_al_east.py
# writes the names of the teams in the American League East

teams_file = open("teams.txt", "w")

teams_file.write("Boston Red Sox\n")
teams_file.write("Baltimore Orioles\n")
teams_file.write("Toronto Blue Jays\n")
teams_file.write("Tampa Bay Rays\n")
teams_file.write("New York Yankees\n")

$ python3 write_al_east.py

$ cat teams.txt
Boston Red Sox
Baltimore Orioles
Toronto Blue Jays
Tampa Bay Rays
New York Yankees

Notice that I had to add the newline character \n at the end of every line
Otherwise all the text would be on a single line

Reading Data From a File

There is more than one method that can read a line
The simplest is read

Which returns a string containing everything in the file

$ cat read_teams.py
# reads the contents of the file teams.txt

teams_file = open("teams.txt", "r")

teams = teams_file.read()

print(teams)

teams_file.close()

$ python3 read_teams.py
Boston Red Sox
Baltimore Orioles
Toronto Blue Jays
Tampa Bay Rays
New York Yankees

It turns out that read is not very useful
Normally we want to read a file line by line
I'll show you how to do this in the next class

Ethics and Technology

The Spiderman Principle
