Class 19

Tips and Examples

Using Control Z with an Editor
Redirecting Output From Background Job

Review

New Material

Positional and Special Parameters
Quoting and the Evaluation of Variables
Removing a Variable's Value
Variable Attributes
Processes
System Calls
The History of Computer Languages

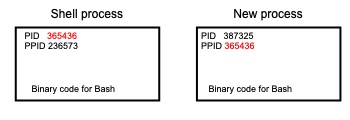

Creating a New Process

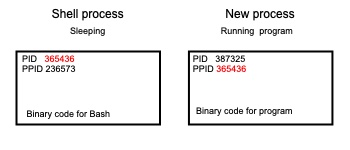

How the Shell Runs a Program
Process Structure
Booting a Unix Machine
Process Identification

Microphone

Graded Quiz

You can connect to Gradescope to take weekly graded quiz today during the last 15 minutes of the class.

Once you start the quiz you have 15 minutes to finish it.

You can only take this quiz today.

There is not makeup for the weekly quiz because Gradescope does not permit it.

Homework 9

I have posted Homework 9 here.

As usual, it will be due next Sunday at 11:59 PM.

Tips and Examples

Using Control Z with an Editor

fg is used to bring a background job into the foreground
But it will also bring a suspended job back to life
This allows you to use Control Z to switch in and out of a text editor ...
while working on a script
You launch an editor to work on a script
When you want to test your script you hit Control Z
This suspends the editor and brings you back to the command line
There you can run your script to test it
When you want to return to the editor simply enter fg
You can also use this trick with man and info

Redirecting Output From Background Job

To run a job in the background, you put an ampersand, & at the end of the line
If you want to redirect output, you must do this before the &
That means you want to do something like this
```
./bother.sh > /dev/null &
```
NOT this
```
./bother.sh & > /dev/null
```
The same is true for redirecting standard input or standard error
The & must be the last thing on the command line

Questions

Are there any questions before I begin?

Review

Shell Variables

A variable is a name given to a place in memory that holds a single value
Shell variables are variables that are defined in a shell ...
and can be used inside that shell
To get the value of a shell variable ...

put a dollar sign, $, in front of the variable name

$ echo $PATH
/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games

Some variables are set and maintained by the shell itself
They are called keyword shell variables
Or just keyword variables
A keyword is a word with special meaning to the shell
Many of these keyword variables can be changed by the user
Other variables can be created by the user
They are called are called user-created variables

Creating a Shell Variable

You create a variable using the following format
```
VARIABLE_NAME=VALUE
```

Like this

$ username=ghoffman

$ echo $username
ghoffman

There must be no spaces on either side of =

If you include spaces you will get an error

$ username = ghoffman
username: command not found

The value you assign to a variable must not contain a space
```
$ name=Glenn Hoffman
Hoffman: command not found
```
There are two ways to deal with this
- Escape the whitespace characters with a \
- Quote the entire value
The backslash character turns off the special meaning ...

of the character that follows it

$ name=Glenn\ Hoffman

$ echo $name
Glenn Hoffman

Of course you must put the backslash in front of every whitespace character ...

or you will get an error

$ team=Boston\ Red Sox
Command 'Sox' not found

For this reason it is usually better to quote the entire value

You can use either a single quote '

$ team='Boston Red Sox'

$ echo $team
Boston Red Sox

Or a double quote "

$ team="Boston Red Sox"

$ echo $team
Boston Red Sox

There is a difference between the two quotes
But we will save that for another class
Be sure to use the same quote at the end of the value ...
as you used at the start

Scope

Where a variable can be used is called the scope of the variable
Shell variables have two scopes
- Local
- Global
Local variables only have meaning in the shell in which they are defined
They have no meaning in any other subshell
Global variables are variables defined in one shell ...
and have meaning in all sub-shells created from that shell

Local Variables

By default every shell variable you create is a local variable
You must do something special to make a variable global
If I create the variable name ...

I can use it in that shell

$ name='Glenn Hoffman'

$ echo $name
Glenn Hoffman

But not in a subshell

$ bash

ghoffman@itserver6:~$ ps
  PID TTY          TIME CMD
29566 pts/16   00:00:00 bash
29792 pts/16   00:00:00 bash
29796 pts/16   00:00:00 ps

ghoffman@itserver6:~$ echo $name

$

This means we cannot use a local variable defined in the login shell ...
inside a shell script

Global Variables

To make a variable global use the export command
You can run export on a variable you have already created
```
$ export name

$ ./print_name.sh
name = Glenn Hoffman
```
Notice that I did not put a $ in front of the name
That is because I am not changing its value
More often you use export when you are defining the variable
```
$ export name="Glenn Hoffman"
```
If you do not use export when defining a variable ...
it will be a local variable

Choosing the Scope of a Variable

In general, local variables are only used inside shell scripts
For example in all my test scripts I define the variable ex_no
```
ex_no=18
```
I can then use this variable in any part of the script
But this variable has no use outside this script
So there is no need to make it global
But every test script needs to know the absolute pathname of the course directory
Because that is where your Class Exercise scripts are located
I want to define this variable once so I can use it in every script
So I define it inside my .bash_profile
```
export lncd=/courses/it244/f24/ghoffman
```

Defining Global Variables

You can define local variables inside a script
And they will be available every time you run the script
What about global variables?
If a global variable is defined on the command line ...
it will be defined during that login session
But it will disappear as soon as you log out
To make them permanent you need to define them in .bash_profile
.bash_profile is a startup file
This file contains Linux commands that are run when you log in
All startup files are contained in your home directory

Keyword Shell Variables

Keyword shell variables are also called keyword variables
They have special meaning to the shell
By convention, the names of keyword variables are always CAPITALIZED
Most keyword variables can be changed by the user
This is normally done in the startup file .bash_profile
When you do this, you usually want to keep the current value of the variable ...
but add something to it
To do this, the value after the = starts with the current value of the variable
This is then followed by the additional values
To customize the value of PATH I could write
```
PATH=$PATH:/home/ghoffman/bin/shell
```
Notice the : between the list of directories in $PATH ...
and the directory I have added

Important Keyword Shell Variables

There are a number of keyword variables that affect your Unix session

Some of the more important are

Variable	Value
HOME	The absolute pathname of your home directory
PATH	The list of directories the shell must search to find the executable file to run a command
SHELL	The absolute pathname of your default shell
PWD	The absolute pathname off your current directory
PS1	Your command line prompt - what you see after entering each command
PS2	The secondary prompt - what you see if you continue a command to a second line

User-created Variables

User-created variables are any variables you create
By convention, the names of user-created variables are lower case
```
lncd=/courses/it244/f24/ghoffman
```
User-created variables can be either local or global in scope
The variables I create in my scripts are user-created variables ...
but I have many global variables

I define a global variable for the class directories of each class I teach

export lncd=/courses/it244/f24/ghoffman
export s1cd=/courses/it116/f24/ghoffman
export s2cd=/courses/it117/f24/ghoffman

`env` - Show All Global Variables

If you run env without an argument ...

it prints the values of all global variables

$ env
TERM=xterm-color
SHELL=/bin/bash
SSH_CLIENT=66.92.76.9 53785 22
OLDPWD=/home/it244gh
SSH_TTY=/dev/pts/8
USER=it244gh
...

The `read` command

Most scripts need input from the user
One way to get this input is with the read command
read is used to set the value of a local variable using the following format
```
read VARIABLE_NAME
```
When Bash gets to this line in a script ...
it stops and waits for the user to type something
When the user hit Enter or Return ...
Bash assigns whatever the user typed ...
to the variable whose name appears after read
If you run read with the -p option it will print a prompt
```
read -p PROMPT VARIABLE_NAME
```

Here is an example

#! /bin/bash

read -p "Please enter a value: " value
echo $value

When I run this I get

$ ./read_2.sh
Please enter a value: hi there
hi there

The text in blue is user input

Separating and Grouping Commands

You can enter more that one command on a single command line

But you must enter a semicolon, ;, after each command

$ echo Here are the contents of my home directory ; ls ~ ; echo
Here are the contents of my home directory
bin   course_files  it116       it244       mail         submitted    tmp
code  html          it116_test  it244_test  public_html  tests_taken  xrchiv

Each command is executed in the order it was typed at the command line

| (pipe) and & (ampersand) as Command Separators

The pipe, | , and ampersand, & , characters are also command separators
| sends the output of one command into the input of the next
Each command is a separate process
& after a command causes the command to run in the background
When we do this, two things happen
- The command is disconnected from the keyboard
- The command will run at the same time
  as the next command you enter
But the ampersand is also a command separator

So we can use it to run many commands in the background at the same time

$ ./bother.sh > /dev/null & ./bother.sh  > /dev/null & ./bother.sh  > /dev/null & jobs
[1] 1794
[2] 1795
[3] 1796
[1]   Running                 ./bother.sh > /dev/null &
[2]-  Running                 ./bother.sh > /dev/null &
[3]+  Running                 ./bother.sh > /dev/null &

Continuing a Command onto the Next Line

A command line entry can be as long as you like
If you reach the end of your session window while typing your command ...
you can keep going
Your text will wrap to the next line
But this can break a command line argument into two parts ...
one on each line ...
which can make it hard to read
When this happens it helps to break a command line into multiple lines
You can do this by typing a backslash, \ ...

followed immediately by the Enter key

$ echo A man \
> A plan \
> A canal \
> Panama
A man A plan A canal Panama

The backslash turns off the special meaning of newline
The newline character tells Bash to run your command
Backslash only escapes the character immediately following it
When you escape newline ...
the shell responds with the greater than symbol, >
This is the secondary prompt
The shell is telling you it expects more input
The normal prompt is your primary prompt
You get the primary prompt ...
when the shell is waiting for a command
You get the secondary prompt ...
when the shell is waiting for more of your command line

Using Parentheses, ( ) , to Run a Group of Commands in a Subshell

A group of commands within a longer command line ...
can be given a subshell of their own

You can do this by putting the commands within parentheses

( echo Class Notes 19; echo ; cat 19_class_notes_it244.html ) | less

In the line above the combined output of three separate Unix commands is piped into less

The Directory Stack

Bash provides a way for you to move back to previous directories
The directory stack keeps tracks of each directory you enter
But directory stack is only engaged ...
when you use two special commands
- pushd
- popd
The stack operates on the principle of last in, first out
You go back to a previous directory ...
by removing the top directory from the stack ...
and going to that directory
You can keep doing this until you get where you want to be
There are three commands that use the directory stack
- dirs
- pushd
- popd

`dirs` - Displays the Directory Stack

A stack is a LIFO data structure which stands for Last In First Out
A stack allows you to go back in time to previous values of some important variable
dirs displays the current contents of the directory stack
If the stack is empty, dirs displays the current directory
```
$pwd
~/it244/hw5

$ dirs
~/it244/hw5
```

`pushd` - Pushes a Directory onto the Stack

In programming, putting something onto a stack is called a push
pushd changes your current directory just like cd
But it also adds your new directory to the directory stack
When used with an argument, pushd
- Places the new directory on the stack
- Displays the current contents of the directory stack
- Moves to the new directory

`popd` - Pops a Directory off the Stack

In programming, removing a value from a stack is called a pop
popd changes your directory to another directory
But it also removes a directory from the stack
When used without an argument, popd
- Removes the top directory from the stack
- Prints the current stack
- Goes to the directory that is now on top of the stack

Attendance

New Material

Positional and Special Parameters

Positional and special parameters are variables set by Unix
The values of these variable change each time you enter a command
We have already encountered the special parameter ?

It contains the status code returned by the last command

$ ls bar.txt
bar.txt

$ echo $?
0

$ ls xxx
ls: cannot access xxx: No such file or directory

$ echo $?
2

Positional parameters are used by shell scripts to get command line arguments
Each word on the command line is assigned to a positional parameter
The first word is the pathname of the script
It is assigned to positional parameter 0

Each succeeding word on the command line is assigned to the next integer

$ cat print_positionals.sh
#!/bin/bash
#
# Prints the value of the first four positional arguments

echo 0: $0
echo 1: $1
echo 2: $2
echo 3: $3

$ ./print_positionals.sh foo bar bletch
0: ./print_positionals.sh
1: foo
2: bar
3: bletch

Positional parameters are the usual way input is given to a script
Another special parameter is #

# contains the number of arguments passed to a program from the command line

$ cat print_arg_numbers.sh
#!/bin/bash
#
# Prints the number of arguments sent to this script

echo This script received $# arguments

$ ./print_arg_numbers.sh foo bar bletch
This script received 3 arguments

Notice that # counts the arguments to the script
It does not count the name of the script itself

Quoting and the Evaluation of Variables

Whenever the value of a variable contains spaces, you must quote the string ...
or escape the whitespace character
There are two kinds of quotes
- Single quotes, ' '
- Double quotes, " "
Single quotes are the most restrictive
Everything surrounded by single quotes ...
appears in the value exactly as you typed it

This means that special meaning of characters like $ are ignored

$ team="Red Sox"

echo $team
Red Sox

$ cheer='Go $team'

$ echo $cheer
Go $team

Double quotes also preserve spaces in the strings they contain
But you can use a $ in front of a variable name ...

and the $ will get the value of the variable

$ cheer="Go $team"

$ echo $cheer
Go Red Sox

Quotes affect everything they enclose
The backslash, \, only effects the character immediately following it
```
$ foo=bar

$ echo $foo
bar

$ foo3=\$foo

$ echo $foo3
$foo
```

Removing a Variable's Value

There are two ways to remove the value of a variable

You can use the unset command

$ echo $foo
FOO

$ unset foo

$ echo $foo

$

Notice that the variable name was not preceded by a $
That's because we are dealing with the variable itself, not its value
unset is a built-in
This makes sense because it changes a value in the current shell
Another way to do this ...
is to set the value of the variable to the empty string
```
$ echo $foo
FOO

$ foo=

$ echo $foo

$
```

Variable Attributes

Variables can have attributes such as being read only or global
We have already seen one way to set the attribute of a variable
If you precede the name of a variable with export it makes the variable global
```
$ export foo=FOO
```

You can make a variable read only by using the readonly command

$ echo $foo
FOO

$ readonly foo

$ foo=bar
-bash: foo: readonly variable

readonly is also a built-in
You must set the value of a variable ...
before you make it read only
Once you make a variable read only ...
its value cannot be changed
There are many more variable attributes
They can be set using the declare command ...
which is also a built-in

Here are some of the options for declare

Option	Meaning
a	Declares a variable to be an array
f	Declares a variable to be a function name
i	Declares a variable to be an integer
r	Makes a variable read only
x	Makes a variable global

Let's look at some examples

$ foo=bar

$ echo $foo
bar

$ foo=bletch

$ echo $foo
bletch

$ declare -r foo

$ foo=bling
-bash: foo: readonly variable

The readonly built-in is a synonym for declare -r
export is a built-in too
And it is a synonym for declare -x

To see the attributes of a variable run declare -p on the name of the variable

$ declare -p PWD # the -p option prints all attributes of the variable
declare -x PWD="/home/ghoffman"

The -x after declare says that PWD is a global variable
Making a variable global is the only attribute I every use

Processes

A process is a running program
Every process has resources that it needs to do its job
Unix is a multitasking operating system
This means many processes can run at the same time
Every time you run a program ...
a new process is created ...
except when you run a built-in
Running a built-in command does not create a process
Because it runs inside the shell's process
When you run a shell script ...
bash creates a subshell for the script
This subshell runs in a new process

System Calls

When you run a command that is not a built-in
The shell asks the kernel to create a process
How does the shell make this request?
It uses a system call
A system call allows a program written in language like C ...
to run a procedure built into the kernel
When a program needs the kernel to do something ...
it makes a system call

The History of Computer Languages

Before discussing how processes are created we need to know some history
Computer programs are a series of binary instructions
Written in the machine language that the CPU understands
Each CPU has its own unique machine language
The commands in these languages are binary numbers
Binary numbers are a series of 1's and 0's
In the early days, programmers wrote code in the binary numbers ...
of the CPU's machine language
It was very difficult to program in machine language
Something better was needed
That something better was assembly language
Instead of writing a binary number for each instruction ...
you wrote a few letters that stood for that instruction
Programs written in this language were run through a program called an assembler
This program translated the letter codes into binary instructions

A line of assembly code might look like this

MOV AL, 61h       ; Load AL with 97 decimal (61 hex)

This was better than writing binary
But it still forced programmers to think like the machine
There were no loops or if statements ...
or easy ways to break a big program into functions
This made writing programs very tedious
To improve this situation higher level languages were created
These languages featured control structures like loops and conditionals
They also allowed programmers to break up the code into functions
C, Fortran and Cobol are examples of higher level languages
C is sometimes called a middle-level language
While it has all the features of a higher level language ...
it also allows you to work in 1's and 0's of machine language
Most operating systems are written in C

Creating a New Process

So how does Bash ask the kernel to create a process to run a program?
Bash, like most of Unix, is written in C
Bash creates a process by making the system call fork
It does this with the following line of C code
```
pid = fork()
```
fork causes the kernel to create a new process
This new process is an exact duplicate of the your command line processs ...
but with a different process ID
This picture in RAM looks like this

This original process is called the parent process
And the new process is called the child process
Notice that the process ID of the login Bash ...
is the parent process ID of the new process

How the Shell Runs a Program

After Bash calls fork we have two identical process
They only differ in their process ID
How can the new process run a different program?
To understand how this happens we have to know a bit about Bash
A new process is created with the system call I mentioned above
```
pid = fork()
```
The next line of code is an if statement ...
that looks at the value of the PID
What happens next depends on the process
In other words it depends on the value of the variable pid
The value of the variable pid in the original Bash process ...
is the PID of the child process just created
So it has nothing to do until the new process finishes
It makes a system call to sleep ...
and goes into a state of suspended animation
It is still in RAM ...
but it gets no time cycles ...
so it is inactive
Something different happens in new process
It is still running Bash ...
and sees that it's PID is the same as the value of the variable pid
It knows it is the newly create child process ...
and knows it should be running a different program ...
not Bash
So it makes a system call to exec
exec replaces the Bash code in process memory ...
with the binary code of the program ...
that you entered at the command line
The situation in RAM now looks like this

When this child process code finishes running ...
it sends an exit status to its parent process
The parent process is your shell
When it gets the status code from the child process ...
the shell process wakes up again ...
and is ready for you next command
This will not be on the Final exam

Process Structure

Every process on a computer was created by a parent process ...
with one exception
How is the very first process created?
Whenever a Unix system is turned on ...
a special first process is created automatically
This special process then creates other process
These processes can create other processes ...
and so on
This creates a hierarchical structure much like the file system
In the filesystem the special directory at the top called the root
Every other file or directory is contained in this directory ...
or one of its subdirectories
Until recently the special first process was init
But for various reasons this is no longer the case in Ubuntu
Though it still may be true in other versions of Linux
The first process on an Ubuntu system is now systemd

Booting a Unix Machine

Whenever you turn on a Unix machine
A spontaneous process is automatically created
The code for this process is either init ...
or systemd
Either way it has a process ID of 1
This process then creates all other processes ...
which are needed to run the services the machine provides
Unix can be run in a mode with only one user
But this is only done under special circumstances
When run in multiuser mode ...
Unix will create processes that allow users to log in
There are an a number of different programs that can be run in these process
For example
- getty
- mingetty
- agetty
Our systems run agetty
Each one of these processes is connected to a physical or virtual terminal
When the code detects an attempt to connect ...
it displays a login prompt
It then waits for the user to respond
When that happens it runs login to verify the password
login is located in the /bin directory
If the password is accepted a system call is made to exec() ...
to run Bash ...
and this process becomes your login shell
Again, this will not be on the Final exam

Process Identification

Each process has a unique Process ID (PID) number
As long as the process runs, it has the same PID
After a process terminates its PID can be assigned to a new process

ps -f displays a full listing for each of the user's process running processes

$ ps -f
UID        PID  PPID  C STIME TTY          TIME CMD
it244gh  26374 26373  0 13:41 pts/5    00:00:00 -bash
it244gh  27891 26374  0 13:57 pts/5    00:00:00 ps -f

The UID column shows the Unix username of the account that started the process
The PID column is the process ID of the process
The PPID column is the process ID of the parent process
That is the process that created this process
The CMD column lists the command that is running in the process
If I were to run sleep in the background ...
and then run ps -f

I would see

$ sleep 10 & ps -f
[1] 27352
UID        PID  PPID  C STIME TTY          TIME CMD
ghoffman  27292 27287  0 15:12 pts/1    00:00:00 -bash
ghoffman  27352 27292  0 15:13 pts/1    00:00:00 sleep 10
ghoffman  27353 27292  0 15:13 pts/1    00:00:00 ps -f

Notice that the parent process of both sleep and ps -f is my login shell
pstree will display a tree of all currently running processes

If I run pstree on pe15 I can see the process structure

systemd─┬─accounts-daemon─┬─{gdbus}
        │                 └─{gmain}
        ├─acpid
        ├─agetty
        ├─atd
        ├─automount───10*[{automount}]
        ├─bash
        ├─bother.sh───sleep
        ├─cron
        ├─cups-browsed─┬─{gdbus}
        │              └─{gmain}
        ├─dbus-daemon
        ├─dhclient
        ├─irqbalance
        ├─2*[iscsid]
        ├─lvmetad
        ├─lxcfs───4*[{lxcfs}]
        ├─master─┬─pickup
        │        └─qmgr
        ├─mdadm
        ├─ntpd
        ├─polkitd─┬─{gdbus}
        │         └─{gmain}
        ├─rpc.statd
        ├─rpcbind
        ├─rsyslogd─┬─{in:imklog}
        │          ├─{in:imuxsock}
        │          └─{rs:main Q:Reg}
        ├─rwhod───rwhod
        ├─screen───bash
        ├─screen───bash───vim
        ├─snapd───7*[{snapd}]
        ├─sshd─┬─3*[sshd───sshd───bash───alpine]
        │      ├─2*[sshd───sshd───bash]
        │      ├─sshd───sshd───bash───pstree
        │      └─sshd───sshd───bash───ssh
        ├─10*[systemd───(sd-pam)]
        ├─systemd-journal
        ├─systemd-logind
        ├─systemd-udevd
        └─ypbind───2*[{ypbind}]

Where you see a number followed by a * ...
it means there are multiple versions of that program ...
are running in different processes
You can see this more clearly if you run pstree with the -p option

Now pstree will show each process along with its process ID

systemd(1)─┬─accounts-daemon(2099)─┬─{gdbus}(2136)
           │                       └─{gmain}(2134)
           ├─acpid(2076)
           ├─agetty(2481)
           ├─atd(2103)
           ├─automount(42937)─┬─{automount}(42938)
           │                  ├─{automount}(42939)
           │                  ├─{automount}(42942)
           │                  ├─{automount}(42945)
           │                  ├─{automount}(42946)
           │                  ├─{automount}(42947)
           │                  ├─{automount}(42948)
           │                  ├─{automount}(42949)
           │                  ├─{automount}(42950)
           │                  └─{automount}(42951)
           ├─bash(27573)
           ├─bother.sh(16996)───sleep(47645)
           ├─cron(2087)
           ├─cups-browsed(40751)─┬─{gdbus}(40833)
           │                     └─{gmain}(40832)
           ├─dbus-daemon(2089)
           ├─dhclient(2246)
           ├─irqbalance(2465)
           ├─iscsid(2355)
           ├─iscsid(2356)
           ├─lvmetad(1199)
           ├─lxcfs(2101)─┬─{lxcfs}(2126)
           │             ├─{lxcfs}(2127)
           │             ├─{lxcfs}(3081)
           │             └─{lxcfs}(29814)
           ├─master(21825)─┬─pickup(44495)
           │               └─qmgr(31008)
           ├─mdadm(2148)
           ├─ntpd(2507)
           ├─polkitd(2164)─┬─{gdbus}(2180)
           │               └─{gmain}(2178)
           ├─rpc.statd(2782)
           ├─rpcbind(2053)
           ├─rsyslogd(2071)─┬─{in:imklog}(2132)
           │                ├─{in:imuxsock}(2131)
           │                └─{rs:main Q:Reg}(2133)
           ├─rwhod(2449)───rwhod(2450)
           ├─screen(19504)───bash(19505)
           ├─screen(20288)───bash(20289)───vim(21881)
           ├─snapd(2056)─┬─{snapd}(2118)
           │             ├─{snapd}(2119)
           │             ├─{snapd}(2120)
           │             ├─{snapd}(2121)
           │             ├─{snapd}(2150)
           │             ├─{snapd}(2151)
           │             └─{snapd}(2152)
           ├─sshd(2341)─┬─sshd(3104)───sshd(3160)───bash(3161)───alpine(8255)
           │            ├─sshd(4288)───sshd(4347)───bash(4348)───alpine(4354)
           │            ├─sshd(15840)───sshd(15919)───bash(15926)
           │            ├─sshd(40522)───sshd(40572)───bash(40588)
           │            ├─sshd(41273)───sshd(41339)───bash(41346)───alpine(41362)
           │            ├─sshd(46574)───sshd(46658)───bash(46665)───pstree(47648)
           │            └─sshd(48106)───sshd(48199)───bash(48200)───ssh(48213)
           ├─systemd(2874)───(sd-pam)(2878)
           ├─systemd(10316)───(sd-pam)(10320)
           ├─systemd(15847)───(sd-pam)(15860)
           ├─systemd(48118)───(sd-pam)(48124)
           ├─systemd(46589)───(sd-pam)(46600)
           ├─systemd(41295)───(sd-pam)(41303)
           ├─systemd(27537)───(sd-pam)(27542)
           ├─systemd(17838)───(sd-pam)(17842)
           ├─systemd(14978)───(sd-pam)(14983)
           ├─systemd(20176)───(sd-pam)(20181)
           ├─systemd-journal(1164)
           ├─systemd-logind(2095)
           ├─systemd-udevd(1207)
           └─ypbind(2476)─┬─{ypbind}(2477)
                          └─{ypbind}(2478)

The part in red is my current login shell
Its child process ia running pstree
There are problems when you run this command in an ssh client ...
running on a Windows machine
The vertical lines do not appear properly

Tips and Examples

Review

New Material

Graded Quiz

Homework 9

Tips and Examples

Using Control Z with an Editor

Redirecting Output From Background Job

Questions

Review

Shell Variables

Creating a Shell Variable

Scope

Local Variables

Global Variables

Choosing the Scope of a Variable

Defining Global Variables

Keyword Shell Variables

Important Keyword Shell Variables

User-created Variables

env - Show All Global Variables

The read command

Separating and Grouping Commands

| (pipe) and & (ampersand) as Command Separators

Continuing a Command onto the Next Line

Using Parentheses, ( ) , to Run a Group of Commands in a Subshell

The Directory Stack

dirs - Displays the Directory Stack

pushd - Pushes a Directory onto the Stack

popd - Pops a Directory off the Stack

Attendance

New Material

Positional and Special Parameters

Quoting and the Evaluation of Variables

Removing a Variable's Value

Variable Attributes

Processes

System Calls

The History of Computer Languages

Creating a New Process

How the Shell Runs a Program

Process Structure

Booting a Unix Machine

Process Identification

Class Exercise

Class Quiz

`env` - Show All Global Variables

The `read` command

`dirs` - Displays the Directory Stack

`pushd` - Pushes a Directory onto the Stack

`popd` - Pops a Directory off the Stack
