Homework 13🔗

Last updated: Wed, 4 Dec 2024 12:05:06 -0500

Out: Wed Dec 04, 2024, 12pm (noon) EST

Due: Wed Dec 11, 2024, 12pm (noon) EST

Overview🔗

In this assignment, you will get to use the "CS450 Lang" "high-level language" that you created!

This hw will be graded accordingly:

Setup🔗

Create a new repository for this assignment by going to the CS450 Fall 2024 GitHub Organization and clicking "New".

Note: The CS450 Fall 2024 GitHub Organization must be the owner of the repository. Do not create the repository in your own account.

When done click "Create repository".

NEW!

Installing 450Lang

In this assignment, we will use our "450 lang" programming language, so we must install it first.

The easiest way to do so is from DrRacket, go to File -> Package Manager, and then install the 450lang package. This will allow you to use the language by writing #lang 450lang at the top of a file.

Tasks🔗

Reading

• Review the The Design Recipe section of the course website (topics that will be covered in future lectures are marked as such).

Notes and Reminders

Because we are using a different programming language for this assignment, we must do some other things (like testing) differently as well. Thus make sure to read the following list of hints and reminders.

• All code you write must still follow the The Design Recipe! (Just submitting code is no longer sufficient.)

• All functions should use define/contract and the predicates from the Data Design Recipe step to help enforce the Signature. No contracts are needed for this hw.

• For Examples and Tests, do not use check-expect from the Beginning Student Language (even though the textbook says to). Instead, use check-equal? or other testing forms from rackunit the built in chk=.

• Examples for a function definition should come right after the definition. But Tests should be put into the test-suite in tests.rkt. Tests should also come after a function definition. Try to think about corner cases and code coverage.

• Also, remember that Racket Style and The Design Recipe reserves certain language features only for specific scenarios. For example, set! and other "imperative" features are not allowed ever. Conditionals such as cond should only be used with enumeration or itemization Data Definitions. Style still matters! (when applicable)

• The submitted program must be only a series of defines bind/recs (both constants and function definitions are allowed) and tests/examples. Do not run any other code, i.e., do not automatically start big-bang! Not following this this will result in GradeScope errors and point deductions.

• You may find the "Syntactic Test Coverage" feature in DrRacket useful. At minimum, one-hundred percent of your code should be run (if not tested) before submission.

• The main code should go in a file named hw13.rkt where the first line of the file is #lang 450lang Tests should go in a tests.rkt file of the appropriate format also go in hw13.rkt.

  In this assignment, each function should have at minimum of one (meaningful) Example and two Tests (that are not the same as the example).

Programming

In this assignment, you will get to use the "CS450 Lang" programming language you created!

Specifically, use our language to write the following recursive functions. You may use any sources to help you clarify or understand the problem. These are all well-known functions so you should have no problems finding information.

1. ;; Ack : Nat Nat -> Nat

   ;; Computes the (2 argument) Ackermann function

   This function is famous because of it’s expensive time complexity (super exponential) so be careful when testing! (computing (ack 4 1) takes over 3 minutes on my machine)

2. ;; isort : List<Num -> List<Num>

   ;; Takes a list of numbers and sorts it in ascending order.

   isort should call the following function (that you define):

   ;; insert : (Num Num -> Bool) Num List<X> -> List<X>

   ;; Takes a comparison function `cmp`, a number `x`, and a list of numbers,

   ;; and inserts the number into the list

   ;; immedicately before the first list element `y` where (cmp x y)=false.

3. ;; reduce : (X Y -> Y) Y List<X> -> Y

   ;; Performs a left-fold with the given function, initial value, and list.

4. ;; deg->rad : Degrees -> Radians

   ;; Converts an angle in degrees to radians

   ;; rad->deg : Radians -> Degrees

   ;; Converts an angle in radians to degrees

   ;; mk-fractal-tree : XCoord YCoord Degrees NonNegInt -> FractalTree

   ;; Starting at the given coordinate, computes a fractal tree by computing all its lines

   ;; Specifically, recur `depth` times, with each iteration turning by both plus/neg degrees

   ;; ftree->img : FractalTree -> Image

   ;; Computes a 2htdp/image of a fractal tree by

   ;; repeatedly using `add-line` to add lines to an `empty-image`

   A FractalTree is a List<Line> and a Line is a pair of (2htdp/image) coordinates (list x1 y1 x2 y2) that represents the endpoints of a line.

   A Fractal Tree is created by recursively creating the lines in the tree. Specifically, from a starting x_1,y_1 compute the endpoint of a line as follows:

   • x_2=x_1+d\cdot S\cdot cos(\theta)

   • x_y=y_1+d\cdot S\cdot sin(\theta)

   where d is the current depth, \theta is the current angle, and S is a SCALE constant. In each iteration, decrement the depth and adjust the angle by both positive and negative TURN-ANGLE degrees, where TURN-ANGLE is also a constant.

   When the depth is zero, end the computation.

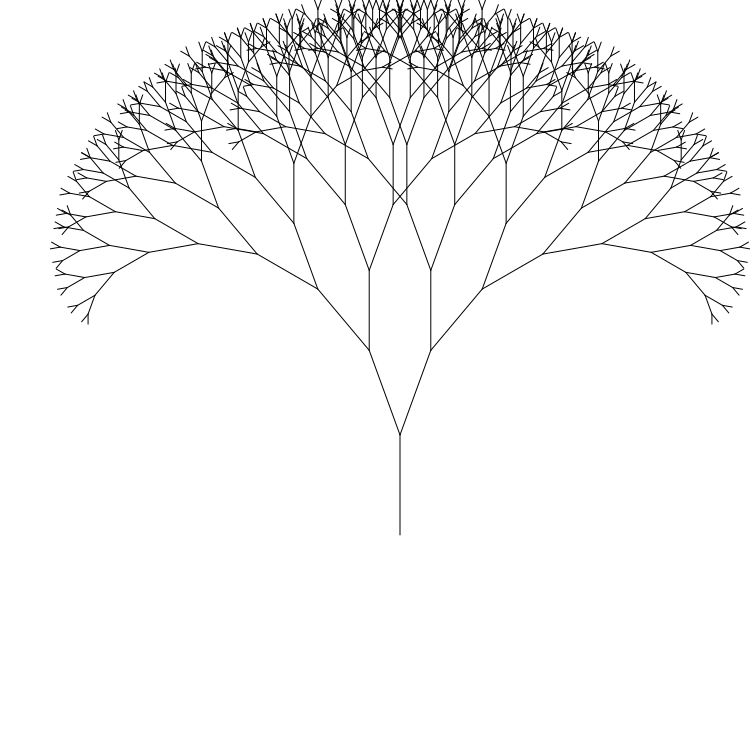

   Here is an example of an image produced with:

   (flip-vertical (ftree->img (mk-fractal-tree 400 200 90 10)))



   (the flip-vertical is used because the 2htdp/image coordinate system creates an inverted tree due to positive=down)

Each function must follow the design recipe and include all required components. In particular, structurally recursion functions should follow their data definitions, while generative (non-structural) recursive functions should follow the Generative Recursion Recipe. Don’t forget to include a Termination Argument in the latter case.

Data Definitions

Here are the Data definitions used in the implementation of the programming language

• Program is a List<TopLevel> where a TopLevel is

  • ’(bind/rec Var Expr)

  • Expr

  In other words, a "program" is a series of "top level" forms, which can be either an expression, or a version of bind/rec that only defines a variable (no body) (so it’s analgous to racket define)

• A Variable (Var) is a Symbol

• An Atom one of:

  • Number

  • String

  • ’TRUE

  • ’FALSE

• A 450LangExpr (Expr for short) is one of:

  • Atom

  • Variable

  • ’(Expr ? Expr : Expr)

  • ’(bind [Var Expr] Expr)

  • ’(bind/rec [Var Expr] Expr)

  • ’(fn List<Var> Expr)

  • (cons Expr List<Expr>)

  Interpretation: represents the surface-level syntax of CS450Lang programs. The last item is a function call, where the function to apply may either be a Racket function (if using a "built in" identifier), or a user-defined fn "lambda" function. The "ternary conditional" uses JS truthy semantics as in previous assignments.

• A 450LangResult (Result for short) is one of:

  • Number

  • String

  • Boolean (Racket)

  • List (Racket)

  • Image (2htdp/image)

  • NaN

  • FnResult

  • ErrorResult

  Interpretation: possible results after running a CS450Lang program. In this assignment, a NaN should be the result of any arithmetic involving non-number arguments.

• A FnResult is one of:

  • Racket function

  • (fn-result List<Symbol> AST Environment)

  Interpretation: possible functions that can be called in a CS450Lang program. The second is user-defined and is analogous to a lambda in Racket. Note that the fn-result Result differs from the fn-ast AST node in that the former represents a result of running a program and must contain an Environment that gives meaning to any free variables in the body of the function, while the latter merely represents source code.

• An ErrorResult is one of:

  • UNDEFINED-ERROR

  • NOT-FN-ERROR

  • ARITY-ERROR

  • CIRCULAR-ERROR

  Interpretation: possible "error" results of a CS450Lang program.

  • An "undefined" error should occur when trying to use an undefined variable.

  • A "not fn" error should occur if attempting to call a non-function.

  • An "arity" error should occur if attempting to call a function with the wrong number of arguments. (Note that the arithmetic functions in the initial environment should handle any number of arguments and should not generate this error.)

  • An "circular" error occurs when using bind/rec incorrectly (e.g., without a base case).

  If one of these errors occurs in an inner expression, it should propagrate to be the final result of the whole expression. If more than one error occurs, e.g., in arguments of a function call, their ordering the data definition specifies their precedence.

Initial Environment

A language is only as useful as it’s initial environment, so this hw has many more "built in" functions and datatypes compare to previous assignments.

• Strings and booleans from previous assignments are available and lists and images have been added

• + and other arithmetic follows JS coercion semantics as from previous assignment. When given lists, + appends lists together when all the arguments are lists. when given a mix of lists and strings, the list elements are converted to strings and then "joined" together with commas (test it for yourself in JS!). otherwise, it follows the JS semantics from Homework 9.

• A chk= primitive, mapped to check-equal? from rackunit is available. This allows you to write tests and examples for your functions.

• In addition to the auto-converting functions from Homework 9 +, -, ===, here is a list of additional primitives in the INIT-ENV initial environment, and the Racket function it’s associated with: * : *, / : /, li : list, cns : cons, 1st : first, 2nd : second, 3rd : third, 4th : fourth, rest : rest, mt : empty, < : <, > : >, <= : <=, >= : >=, – : sub1, ++ : add1, cos : cos, sin : sin, pi : pi, \pi : pi

• Here are the 2htdp/image primitives in INIT-ENV: empty-image : empty-image, add-line : add-line, flip-vertical : flip-vertical

Before Submitting🔗

Testing

Style

All code should follow proper Racket Style.

Also, the repository itself must follow proper style. Specifically, it must have appropriate commit messages. See How to Write a Git Commit Message if you are unsure how to write a commit message.

Files

A submission must have the following files in the repository root:

• hw13.rkt: Contains the hw solution code.

  The first line should be #lang 450lang

• README.md: Contains the required README information, including the GitHub repo url.

Submitting🔗

When you are done, submit your work to Gradescope hw13. You must use the "GitHub" Submission Method and select your hw<X>-<LASTNAME>-<FIRSTNAME> repository.

Note that this is the only acceptable way to submit homework in this course. (Do not manually upload files and do not email files to the course staff. Homework submitted via any unapproved methods will not be graded.)
