Class 12

Today's Topics

Review

Syntax of the Command Line
Command Options
tty
Parsing the Command Line
The PATH System Variable
Running a Program in the Current Directory
Running the Command Entered on the Command Line

New Material

Data Streams
Devices
Unix Devices Are Files
Multiuser Operating Systems
The Monitor and Keyboard
ssh and Pseudo-terminals
Standard Input, Standard Output and Standard Error
The Keyboard and Screen as Standard Input and Standard Output
Redirection
Redirecting Standard Output
Redirecting Standard Input
Redirecting Standard Output Can Destroy a File
Adding Output to an Existing File
/dev/null

Reading Assignment

The reading assignment for this week is chapter 5 of Sobell, The Shell.

Homework 6

I have posted homework 6 here.

It is due this coming Sunday at 11:59 PM.

Review

Syntax of the Command Line

A command typed at the command line has the following format
```
COMMAND [OPTIONS] [ARG1] [ARG2] ... [ARGn]
```
The brackets indicate that the contents are optional
Commands vary in the number of options and arguments they accept
Some accept none ...
others require a specific number of arguments ...
still others accept a variable number of arguments
Arguments must be separated by one or more spaces

Command Options

Options modify the behavior of the command
Options are usually preceded by one or two dashes, -
GNU programs frequently have options that are preceded by two dashes, --
The options in GNU programs are usually words
The options in other Unix programs are usually a single letter
When a command uses a single dash, -, before an option ...
you can usually combine options following the dash
An example of this is ls -ltr
Options using two dashes, -- , usually cannot be combined
In this case, each option must be written separately ...
and preceded by two dashes
Sometimes the option can have it's own argument
Utilities that report the size of files usually do so in bytes
Such utilities often have a -h, or --human-readable, option
With this option, the file size will be displayed in kilobytes, megabytes or gigabytes, as appropriate
Many commands display a help message when run with the --help option
Most GNU utilities accept this option

`tty`

tty is the terminal device driver and is part of the kernel
As you type each character at the command line ...
tty looks at the character and takes appropriate action
Most of the time, tty just takes the character you type ...
and places it in a buffer
It responds differently to the special editing characters
- Backspace
- The arrow keys
- Control A
- Control E
- Control U
- Control K
tty is where all command line editing takes place
When tty sees a newline character ...
which is what you get by hitting Enter (PC) or Return (Mac) ...
it passes the contents of the buffer to the shell

Parsing the Command Line

The shell takes the command line and breaks it up into tokens
Tokens are strings of characters that can be printed ...
unlike Control key sequences and whitespace characters ...
and are separated from each other by whitespace
The act of breaking up text into tokens is called parsing
Next, the shell looks for the name of the command
Usually, the command name is the first string on the command line
The command can be specified by a simple filename
```
ls
```
Or by using a pathname
```
/bin/ls
```

The PATH System Variable

To run a program, a process must be created
The shell cannot create a process ...
only the kernel can
The shell asks the kernel to start the process ...
but in order to do that, it has to give the kernel a pathname ...
for the executable file for that program
Normally, when you run a program you don't use a pathname ...
you simply use the name of the program
To turn the name of a program into a pathname for the executable file ...
the shell uses the PATH variable
PATH contains a list of directories to search to find the program file
The shell searches each of these directories in turn ...
until it finds an executable file with the name of the command
PATH always has a default value ...
which is set when Unix or Linux is installed

The absolute pathname of each directory is separated from the next by a colon, :

$ echo $PATH
/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin:/usr/lib/oracle/12.1/client64/bin

If the shell reaches the end of the directory listings in PATH ...
without finding the command ...
it will display an error message
If the shell finds executable file ...
but you do not have execute privileges
it will tell you this in an error message
You can modify the PATH variable in your own Unix environment

Running a Program in the Current Directory

For security reasons, it is never advisable to put the current directory, . ...
in the PATH list
Then how do you run a program inside your current directory?
You can do this using the following construction
```
./PROGRAM_NAME
```
This will always work ...
regardless of the contents of PATH

Running the Command Entered on the Command Line

When the shell gets the command line from tty ...
it uses PATH to find the executable file to run
The shell then asks the kernel to start a process for that program
A process is a running program ...
and it needs resources to do its job
- Memory
- Access to files
- Time in the machine CPU
Each process has memory allocated to it that it alone can use
This prevents one program from interfering with another
The shell also gives the program the list of tokens from the command line
- The name used to call the program
- The options used
- The arguments used
The shell does not check the options or arguments
While the program is running ...
the shell goes into an inactive state known as "sleep"
When the program finishes it must send an exit status to the shell
The exit status is an integer that must be 0 or greater
An exit status of 0 indicates that the program was able to do its work without error
Any exit status greater than zero indicates an error
A program can issue different error status values for different types of errors
You can see the exit status of the last program by looking at the value of the system variable ?
```
$ cat foo
cat: foo: No such file or directory

$ echo $?
1
```

New Material

Data Streams

Computers work with information
They take information in ...
and they send information out
We can think of these flows of information as data streams
When we run a command that produces some result ...
the characters that we see ...
are a flow of information sent to the screen
This is an output stream
When we save a file ...
this a a flow of information from the program
to the disks
This is also an output stream
When we type something into a word processor ...
this is a flow of information ...
from the keyboard ...
into the program
This is an input stream
When we open a file in a word processor ...
this is a flow of information from the disk ...
into the program
This is also an input stream

Devices

Devices are pieces of electronic equipment ...
that communicate with the CPU ...
through data streams
They do this using device drivers ...
which are software created by the manufacturer ...
that allows the device to talk to the CPU ...
through the kernel
Most device drivers support two way communication ...
allowing both input streams ...
and output streams
Since the device drivers handle the details ...
of data streams coming into or out of a device ...
the kernel can treat input and output to any device ...
in the same way
It does not distinguish between the keyboard and the disk ...
as devices that can provide input streams
This makes things simple

Unix Devices Are Files

One of the reasons why Unix is so powerful ...
is that decisions were made when it was designed ...
to keep it simple and elegant
One such decision was how Unix treats devices
In Unix devices are files
If you think of this it makes sense
The hard drive is a device ...
that can provide both input ...
and output
You can read a file as input ...
and save information to disk as a file ...
for output
Instead of creating some new thing ...
to represent a device ...
Unix just thinks of then as a special kind of file
A device file
This allows programs that run on Unix ...
to send output to a device ...
and take input from a device ...
in the same way it does for a file

Multiuser Operating Systems

In the 1970's when Unix was created ...
computers were big, expensive machines
In order use these machines efficiently ...
multiuser operating systems were created ...
which let many people use the same machine ...
apparently at the same time
The way this works is the machine does some work for each user ...
giving them a slice of time on the CPU
When their slice of time is up ...
the machine stores the contents of RAM ...
which holds the work that has been done ...
in a special place in memory
It then gives a time slice to the next user
Because the machine is so fast ...
it looks like several people are using the machine ...
at the same time

The Monitor and Keyboard

We tend to think of the computer screen ...
and the keyboard ...
as separate devices ...
since we can buy and replace them separately
But this is a recent development
In the 1970 when Unix was created ...
multiuser operating systems allowed several people ...
to be connected to one very expensive computer
This was done by connecting terminals ...
the combination of a keyboard and a screen ...
directly to the machine

The terminal is a device ...
so it needs a device driver
tty is the device driver
that handles both input and output ...
to the terminal
So tty is the device driver for both the keyboard ...
and the screen
Although we no longer use physical terminals ...
tty remains ...
to talk to the keyboard and screen ...
connected to a Unix machine

`ssh` and Pseudo-terminals

Terminals live on in another part of Unix
Whenever you run an ssh client to talk to a Unix machine
your interaction with the machine ...
is the same as you would have if you were at a terminal
To allow this to happen Unix uses tty to talk to your machine ...
through an abstraction called a pseudo-terminal
A pseudo-terminal pretends to be a connection ...
to a physical terminal
All pseudo-terminals appear as files ...
in the directory /dev/pts

The Unix command tty will show you your pseudo-terminal

$ tty
/dev/pts/31

$ ls -l /dev/pts/31
crw--w---- 1 ghoffman tty 136, 31 Mar  9 13:09 /dev/pts/31

The tty command is not the same thing ...
as the tty device driver

Standard Input, Standard Output and Standard Error

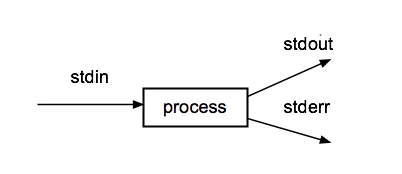

Every Unix process always has access to three different data streams
- Standard Input
- Standard Output
- Standard Error

The programmer who creates the program running in the process ...
does not have to use these streams ...
but there are always given to a process
Standard input is where the program gets input ...
unless the programmer decides to use another source
By default, standard input is the keyboard
Standard output is where the program prints the results ...
if it is not told specifically where to send it
By default, standard output is the screen
Standard error is where the program sends error messages
By default, standard error is the same as standard output ...
the screen
The end point of each of these data streams ...
can be changed by the user ...
using a Unix feature called redirection

The Keyboard and Screen as Standard Input and Standard Output

By default, standard input is taken from the keyboard
By default, standard output goes to the screen
By default, standard error also goes to the screen
The cat utility expects you to give it the the name of the file ...
you want to print to the command line
What happens when you don't give it a file name as an argument?
In this case, cat will accept input from standard input ...
which, by default, is the keyboard
If you run cat without specifying a file ...
it will simply echo what you type
```
$ cat
foo
foo
bar
bar
bletch
bletch
^C
```
I used to use this trick in a Class Exercise at the start of the semester ...
when I had students create a .forward file ...
before I had shown them how to use nano

Redirection

cat takes as its argument a file ...
which it uses as input
If you don't give cat a file to use as input ...
it take input from standard input ...
which is the keyboard by default
When I had students create a .forward file

I told them to enter the following at the command line

cat > .forward [Enter]
YOUR_EMAILADDRESS [Enter]
[Control D]

This trick allows you to use cat as a simple text editor
But it won't allow you to backspace
This is an example of redirection
By using the greater than character, > ...
we are telling cat to send output to the file .forward ...
instead of printing it to the screen
Redirection is when you tell Unix to take data from ...
or send data to ...
some other "file" then it would normally use
In the above example we have redirected standard output
Instead of sending the output from cat to the terminal ...
we are sending it to the file .forward
Redirection is one of the features that makes Unix flexible
It allows you to take input from ...
or send output to ...
any file or device you wish
You can take input from something other than the keyboard ...
like a file
You send output to something other than the screen ...
such as a file ...
or a device
Redirection is what makes pipes possible
When you set up a pipe ...
you are sending the standard output of one program ...
into the standard input of another
You are redirecting the output of the first command ...
from the terminal ...
to the input of the second command

Redirecting Standard Output

To redirect output use the greater than symbol, >
followed by a filename
This tells Unix to send the output from the command ...
to the file or device that appears after the symbol
The format for output redirection is
```
COMMAND [ARGUMENTS] > FILENAME
```

For example, to save a list of everyone currently logged on, you could use

$ who > current_logins.txt

$ cat current_logins.txt
bmt11989 pts/1        2011-10-02 16:43 (c-24-147-18-10.hsd1.ma.comcast.net)
vtran    pts/0        2012-09-26 17:34 (c-76-119-98-173.hsd1.ma.comcast.net)
abutawha pts/1        2012-09-26 17:36 (158.121.234.175)
ghoffman  pts/2        2012-09-26 18:19 (dsl092-066-161.bos1.dsl.speakeasy.net)

Redirecting Standard Input

When redirecting standard output, we were sending output ...
to something other than the screen
When we redirect standard input, we take input ...
from something other than the keyboard
To do this, we use the less than symbol, <
Here is the format
```
COMMAND [ARGUMENTS] < FILENAME
```
repeat.sh is a shell script ...

that repeats the the text the user enters

$ ./repeat.sh
Enter line 1: 1
Enter line 2: 2
Enter line 3: 3
Enter line 4: 4
Enter line 5: 5

You entered
-----------
1
2
3
4
5

But I can also take input from a file ...

by redirecting standard input

$ cat five_lines.txt
Line 1
Line 2
Line 3
Line 4
Line 5

$ ./repeat.sh < five_lines.txt

You entered
-----------
Line 1
Line 2
Line 3
Line 4
Line 5

Redirecting Standard Output Can Destroy a File

If you redirect standard output to a file that already exists ...
you will overwrite the contents of that file
You will replace the original contents of the file ...
with the output of the new command
There is a "noclobber" option in Bash to prevent this from happening
But it is best to simply be careful about the file ...
to which you redirect standard output

Adding Output to an Existing File

If you redirect standard output to a file that already exists ...
you will lose the original contents of that file
But Unix allows you to add something to the bottom of a file
This is called appending
The append symbol is two greater than symbols with no space in between, >>
The format is
```
COMMAND [ARGUMENTS] >> FILENAME
```

For example

$echo foo > test.txt

$ cat test.txt
foo

$ echo bar >> test.txt

$ cat test.txt
foo
bar

Notice that "foo" is still in the file ...
and "bar" is on the following line

/dev/null

Sometimes a program will do something useful ...
but produce output you don't want
For situations like this, Unix provides /dev/null
Any output you send to /dev/null will disappear
It will never appear on the screen
If you redirect input to come from /dev/null ...
the command will receive an empty string
/dev/null is most useful when dealing with error messages
Since error message normally go to the screen
they will be mixed up with the regular output
Redirecting standard error to /dev/null ...
will prevent this from happening
I will show you how to do this in a future class
You can use /dev/null to test your scripts ...
for errors

The following script has a command that will cause an error

$ cat script_with_error.sh
# this script has an error

cd XXXXXX # line with error

ls -l /

But if you run it, you probably won't spot the error ...

because it scrolls off the top of the screen

$ ./script_with_error.sh
./script_with_error.sh: line 3: cd: XXXXXX: No such file or directory
total 73732
drwxr-xr-x    2 root root     4096 Oct 15 06:45 bin
drwxr-xr-x    3 root root     4096 Oct 15 06:45 boot
-rw-------    1 root root 75390976 Oct  8 00:06 core
drwxr-xr-x  102 root root        0 Oct  6 07:06 courses
drwxr-xr-x   46 root root        0 Oct  6 07:06 data
drwxr-xr-x   15 root root     4160 Oct  6 07:06 dev
drwxr-xr-x  119 root root    12288 Oct 15 13:32 etc
drwxr-xr-x    8 root root        0 Oct  6 07:06 groups
drwxr-xr-x 1943 root root        0 Oct 14 14:42 home
drwxr-xr-x    3 root root     4096 Aug 25 16:18 home.ORIG
lrwxrwxrwx    1 root root       33 Sep 29 06:40 initrd.img -> boot/initrd.img-3.16.0-50-generic
lrwxrwxrwx    1 root root       33 Sep 11 06:49 initrd.img.old -> boot/initrd.img-3.16.0-49-generic
drwxr-xr-x   21 root root     4096 Aug 26 22:46 lib
drwxr-xr-x    2 root root     4096 Aug 26 22:46 lib32
drwxr-xr-x    2 root root     4096 Aug 26 06:50 lib64
drwxr-xr-x    2 root root     4096 Aug 26 22:46 libx32
drwx------    2 root root    16384 Aug 25 16:11 lost+found
drwxr-xr-x    3 root root     4096 Aug 25 16:12 media
drwxr-xr-x    2 root root     4096 Apr 10  2014 mnt
drwxr-xr-x   11 root root        0 Oct  6 07:06 nobackup
drwxr-xr-x    2 root root     4096 Feb 18  2015 opt
dr-xr-xr-x  522 root root        0 Oct  6 07:06 proc
drwx------    4 root root     4096 Sep  9 14:22 root
drwxr-xr-x   19 root root     1020 Oct 15 13:31 run
drwxr-xr-x    2 root root    12288 Oct 15 06:45 sbin
drwxr-xr-x  174 root root        0 Oct  6 07:06 sources
drwxr-xr-x    5 root root        0 Oct  6 07:06 spool
drwxr-xr-x    2 root root     4096 Feb 18  2015 srv
dr-xr-xr-x   13 root root        0 Oct  6 22:29 sys
drwxrwxrwt   40 root root     4096 Oct 15 13:32 tmp
drwxr-xr-x    2 root root     4096 Sep 21 16:28 TMP
drwxr-xr-x  269 root root        0 Oct  6 07:06 tools
drwxr-sr-x    2 root root     4096 Aug 26 23:30 users
drwxr-xr-x   12 root root     4096 Aug 26 22:46 usr
drwxr-xr-x   12 root root     4096 Oct 15 05:45 var
lrwxrwxrwx    1 root root       30 Sep 29 06:40 vmlinuz -> boot/vmlinuz-3.16.0-50-generic
lrwxrwxrwx    1 root root       30 Sep 11 06:49 vmlinuz.old -> boot/vmlinuz-3.16.0-49-generic

But if you run the script and redirect standard output to /dev/null ...

all you will see will be the error messages

$ ./script_with_error.sh > /dev/null
./script_with_error.sh: line 3: cd: XXXXXX: No such file or directory

I use this trick in my testing scripts ...
to check your Class Exercises
You should use this trick to test all your scripts
