Review

• The Movie Subclass
• Creating a Subclass
• Creating a Constructor for a Subclass
• Movie Accessor Methods
• The add_actor Method
• A __str__ Method for Movie
• The super Function
• Creating Derived Objects
• The Instructional Class
• The Instructional Constructor
• The get_name Method for
• The __str__ Method for Instructional
• Polymorphism
• Mutator for the Instructional Class
• Accessors for the Instructional Class

New Material

• Functions Calling Functions
• Recursive Functions
• Writing Recursive Functions
• Calculating the Factorial of a Number
• Calculating Fibonacci Numbers
• Another Example of Recursion
• Replacing Recursion with a Loop
• Calculating Factorials with a Loop
• Calculating Fibonacci Numbers with a Loop
• Direct versus Indirect Recursion
• Intellectual Property

Quiz 9

Let's look at the answers to Quiz 9.

Readings

If you have the textbook read Chapter 12, Recursion, sections 12.1 Introduction to Recursion, 12.2 Problem Solving with Recursion and 12.3 Examples of Recursive Algorithms.

Solution to Homework 10

I have posted a solution to homework 10 here.

Let's take a look.

Homework 11

I have posted homework 11 here.

This is the last homework assignment.

Review

The Movie Subclass

• Every movie entry will have the four attributes of the Video class
  • Collection number
  • Name
  • Length
  • Format
• But it will also have the following additional attributes
  • Director
  • Studio
  • Actors
• The constructor will set the values for __director and __studio
• __actors will be a set
• To which entries will be added by a mutator method

Creating a Subclass

• We define a subclass using the following format

  class SUBCLASS_NAME(SUPERCLASS_NAME):

• To declare the Movie class we use

  class Movie(Video):

Creating a Constructor for a Subclass

• We need to give the Movie constructor 5 arguments
  • name
  • length
  • format
  • director
  • studio
• But the __init__ won't use the first three values directly
• Instead it will call __init__ in the class Video
• To set the first three attributes
• We refer to __init__ in the Video class
• Using the class name

  Video.__init__(...)

• The we set the values of the attributes
• That are unique to the Movie class
  • directory
  • studio
  • actors
• The actors will be stored in a set
• Their names will be added later
• At this point we need to create an empty set
• Here is the code for the Movie constructor

  def __init__(self, name, length, format, director, studio):
      Video.__init__(self, name, length, format)
      self.__director = director
      self.__studio   = studio
      self.__actors   = set()

• The Movie is a subclass of Video
• So it inherits the __str__ method from Video
• Along with the accessors

  >>> m1.get_collection_no()
  1
  >>> m1.get_name()
  'Forbidden Planet'
  >>> m1.get_length()
  98
  >>> m1.get_format()
  'DVD'

Movie Accessor Methods

• We need to create accessors for the Movie attributes

  def get_director(self):
      return self.__director

  def get_studio(self):
      return self.__studio

  def get_actors(self):
      return self.__actors

The add_actor Method

• add_actor is a mutator
• Used to add the names of actors

  def add_actor(self, name):
          self.__actors.add(name)

• >>> m1.add_actor("Walter Pidgeon")
  >>> m1.add_actor("Anne Francis")
  >>> m1.add_actor("Leslie Nielson")
  >>> m1.add_actor("Warren Stevens")
  >>> m1.get_actors()
  ['Walter Pidgeon', 'Anne Francis', 'Leslie Nielson', 'Warren Stevens']

A __str__ Method for Movie

• Movie has more attributes than Video
• And its __str__ method should show them
• We could try to create one like this

  def __str__(self):
      return str(self.__collection_no) + ": " + self.__name + ", " + \
          str(self.__length) + " minutes, " + self.__format + \
          " Directed by " + self.__director + ", " + self.__studio

• But that won't work

  >>> str(m1)
  Traceback (most recent call last):
    File "<stdin>", line 1, in <module>
    File "/Users/glenn/workspace-mars/it117/resources_it117/code_it117/example_code_it117/11_chapter_example_code/movie.py", line 26, in __str__
      ' Directed by ' + self.__director + ', ' + self.__studio
  AttributeError: 'Movie' object has no attribute '_Movie__collection_no'

• The first four attributes are contained in Video
• Not in Movie
• We will call the __str__ method in Video
• And then add the Movie attributes
• But we need a special function to call methods in the parent class

The super Function

• You cannot access the methods in a superclass directly
• Instead you have to use the built-in function super
• A call to super returns a pointer to the the superclass object
• That you can use to access methods in the superclass
• Here is the code for __str__

  def __str__(self):
      return super().__str__() + " Directed by " + self.__director + ", " + self.__studio

• You will file the source code for the Movie class here

Creating Derived Objects

• Whenever we create an object of a derived class
• We are actually creating two objects
• That behave as one
• An object of the derived class
• And an object of the base class
• So when we create a Movie object
• We are also creating a Video object

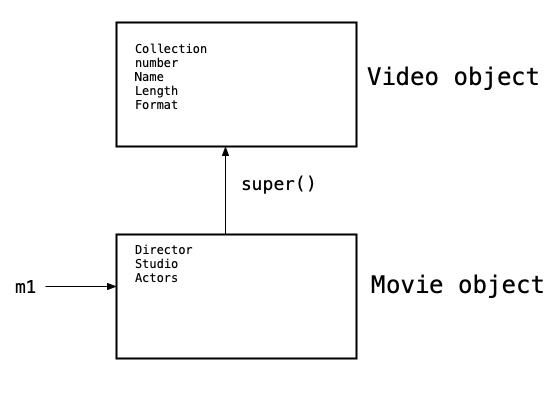

• The picture in memory looks like this

• The object variable m1 points to the derived object
• And super connects to the base class object

The Instructional Class

• Here is the list of attributes for the Instructional class
  • __course_name
  • __company
  • __disc_number
  • __instructor
  • __lectures
• The first 4 values will be set by the constructor
• The names of the lectures on the disc
• Will be stored in a the list __lectures

The Instructional Constructor

• The constructor for Instructional will not take a name parameter
• I'll explain the reason for this in the next section
• But it has to call __init__ in Video
• Which requires a name value
• So I will use the nonsense string "XXX" when calling that method
• Here is the code

  def __init__(self, course_name, company, disc_number, instructor, length, format):
      Video.__init__(self, "XXX", length, format)
      self.__course_name = course_name
      self.__company     = company
      self.__disc_number = disc_number
      self.__instructor  = instructor
      self.__lectures = []

The get_name Method for Instructional

• In the Video and Movie class the name attribute holds the name of the video
• This value is set in the Video constructor
• But I want the name for an Instructional object to be different
• I want it to have the following format

  COURSE_NAME: Disc DISC_NO

• In other words, I want the name value to be calculated from other values
• Not stored in the name attribute
• This means I cannot use the version of get_name inherited from the Video class
• This class needs its own version of get_name

  def get_name(self):
      return self.__course_name + ': Disc ' + str(self.__disc_number)

• Which works when I test it

  >>> i1.get_name()
  'Understanding the Universe: Disc 1'

The __str__ Method for Instructional

• In the Movie class __str__ called the __str__ method of Video
• And then appended the Movie attributes
• But if we call

  super().__str__()

  as we did in Movie
• We will get "XXX" in the output
• This is not what I want
• I want the string representation of my Instructional videos to have a specific format

  COLLECTION_NO: COURSE_NAME: Disc DISC_NO, INSTRUCTOR

• This means the only information I need from the Video superclass
• Is the collection_no
• So __str__ will call get_collection_no from the Video class
• Along with it's own version of get_name
• As well as value of __instructor
• Here is the code

  def __str__(self):
      return str(super().get_collection_no()) + ': ' +self.get_name() + ', ' + self.__instructor

• Notice that I did not use all of the attributes from the superclass
• __str__ doesn't need to show all the attributes
• It just needs to create a reasonable string representing the object
• Here is the test

  >>> from instructional import Instructional
  >>> i1 = Instructional("Understanding the Universe", "Great Courses", 1, "Alex Filippenko", 180, "DVD")
  >>> str(i1)
  '1: Understanding the Universe: Disc 1, Alex Filippenko'

Polymorphism

• The methods we declare in a superclass
• Will be available in all subclasses
• When a subclass has a method with the same name as the superclass
• The interpreter will use the subclass method
• The subclass method is said to override the superclass method
• This means that we can call any of the methods in the superclass
• On any instance of the subclass
• Even though the definition of the method can be different in each subclass
• So we can create a list of subclass objects
• Calling the same method on each one
• But getting very different results

  >>> from movie import Movie
  >>> m1 = Movie("Forbidden Planet", 98, "DVD", "Fred McLeod Wilcox", "MGM")
  >>> from instructional import Instructional
  >>> i1 = Instructional("Understanding the Universe", "Great Courses", 1, "Alex Filippenko", 180, "DVD")
  >>> videos = []
  >>> videos.append(m1)
  >>> videos.append(i1)
  >>> for video in videos:
  ...     print(video)
  ...     print(video.get_name())
  ...
  2: Forbidden Planet, 98 minutes, DVD Directed by Fred McLeod Wilcox, MGM
  Forbidden Planet
  1: Understanding the Universe: Disc 1, Instructor Alex Filippenko
  Understanding the Universe: Disc 1


• This is an example of a feature of inheritance called polymorphism

Mutator for the Instructional Class

• We need an add_lecture mutator for Instructional
• This attribute is used the store the title of each lecture
• It works just like add_actor in Video

  def add_lecture(self, lecture):
      self.__lectures.append(lecture)

Accessors for the Instructional Class

• Here are the accessors for the Instructional class

  def get_name(self):
      return str(super().get_collection_no()) + ": " + self.__course_name + ": Disc " + \
          str(self.__disc_number)

  def get_course_name(self):
      return self.__course_name

  def get_company(self):
      return self.__company

  def get_disc_number(self):
      return self.__disc_number

  def get_instructor(self):
      return self.__instructor

  def get_lectures(self):
      return self.__lectures

• You will find the source code for the Instructional class here

New Material

Functions Calling Functions

• A function is a collection of statements that has a name
• And does some work
• To use a function we make a function call
• Since a function call is a statement
• The code inside one function
• Can call another function
• Let's look at an example

  $ cat function_calling_function.py
  #! /usr/bin/python3

  # Demonstrates one function calling another

  def function_1(arg):
      print("This is function_1 printing it's argument:", arg)
      print()
      print("function_1 is now calling function_2(' + arg +')")
      function_2(arg)
      print()
      print("This is function_1 signing off")

  def function_2(arg):
      print()
      print("This is function_2 printing it's argument:", arg)

  function_1("Hello")

• When we run this, we get

  $ ./function_calling_function.py
  This is function_1 printing it's argument: Hello

  function_1 is now calling function_2("Hello")

  This is function_2 printing it's argument: Hello

  This is function_1 signing off

• Notice that when function_2 finishes it's work
• Control reverts to function_1

Recursive Functions

• A function can call another function
• That means a function can call itself
• A function that calls itself is a recursive function
• Here is an example of a recursive function

  >>> def add_one_and_print(num):
  ...    num +=1
  ...    print(num)
  ...    add_one_and_print(num)
  ...

• But if we call this function with an argument of 0
• It will run for a long time

  1
  2
  3
  4
  5
  ...
  994
  995


• But eventually it will print error message

  Traceback (most recent call last):
    File "<stdin>", line 1, in <module>
    File "<stdin>", line 4, in add_one_and_print
    File "<stdin>", line 4, in add_one_and_print
    File "<stdin>", line 4, in add_one_and_print
    [Previous line repeated 992 more times]
    File "<stdin>", line 3, in add_one_and_print
  RecursionError: maximum recursion depth exceeded while calling a Python object
  996

• The problem is that the function was not told when to stop
• You might think that it should go on counting forever
• Until I stopped it by hitting Control C
• But this did not happen
• Because the Python interpreter stopped the script
• Why?
• Every time a function calls another function
• A little bit of RAM must be used to store the function's local variables
• These allocations of RAM are removed when the function ends
• But in this case the function never finished
• So the interpreter kept allocating RAM
• Until it ran out
• When that happened, it aborted the script

Writing Recursive Functions

• The trick in writing recursive functions
• Is to make sure the code will not go on forever
• Something in the code must make it stop eventually
• Here is a recursive function that counts down from some number

  def count_down(num):
      print(num)
      if num > 1:
          count_down(num - 1)

• The function will only call itself
• If num is greater than 1
• This prevents the function from running forever
• Here is what we get when we call the function
• With an argument of 10

  10
  9
  8
  7
  6
  5
  4
  3
  2
  1


• A recursive function should never call itself
• Unless you have written the code
• So it will eventually stop

Calculating the Factorial of a Number

• To make sure that recursion comes to an end
• You must have two things
  • Code that that makes the recursion stop under a certain condition
  • Code that works toward this end condition
• The condition that causes the program to end is called the base case
• Every time the function makes a recursive call to itself
• The argument to the function call must bring it closer to the base case
• We can illustrate this with a function to calculate factorials
• The factorial of n is written as

  n!

• It is defined as product of multiplying all numbers from 1 to n
• So the factorial of 2 is

  2! = 1 * 2 = 2

• Similarly

  3! = 1 * 2 * 3 = 6
  4! = 1 * 2 * 3 * 4 = 24
  5! = 1 * 2 * 3 * 4 * 5 = 120

• If you look closely at these calculations you will see a pattern

  3! = 2! * 3
  4! = 3! * 4
  5! = 4! * 5


• Here is the formula for factorial

  n! = (n-1)! * n

• What is the condition that will cause this recursion to stop?
• I left out a small part of the definition of factorial
• The definition for factorial given above only works for integers greater than 1
• The factorial of 1 has a different value

  1! = 1

• With this in mind, we can write a recursive factorial function

  def factorial(num):
      if num == 1:
          return 1
      else:
          return factorial(num -1) * num

• Calling this function I get

  >>> print("5!:",factorial(5))
  5!: 120

• In this code the base case occurs if the number is 1
• Every call to the function will approach the base case
• Because the argument of each function call
• Is one less than the argument used to call the function

Calculating Fibonacci Numbers

• The Fibonacci numbers are a sequence of integers
• The first two numbers are

  1 1

• The next number is the sum of the preceding two numbers
• Here are the first ten Fibonacci numbers

  1 1 2 3 5 8 13 21 34 55

• Here's the formula for the nth Fiboacci number in the sequence

  F(n) = F(n - 1) + F(n - 2)

• But this definition only works if we further specify

  F(1) = 1
  F(2) = 1

• They are the base cases
• Here is a recursive function to calculate the nth Fibonacci number

  def fibonacci(num):
      if num == 1 or num == 2:
          return 1
      else:
          return fibonacci(num - 1) + fibonacci(num - 2)

• To get the Fibonacci sequence
• I have to call this function inside a for loop

  for n in range(1, 11):
      print(fibonacci(n), end=" ")

• And I get

  1 1 2 3 5 8 13 21 34 55

Another Example of Recursion

• Many things in mathematics are defined recursively
• Like factorials and Fibonacci_numbers
• But recursion also appears in IT
• The hierarchical filesystem is recursive
• The special directory at the top called root contains directories
• Each of which in turn contains other directories
• And so on
• Sometimes you need to go through all the directores
• Looking at what they contain
• This is called a directory walk
• And it is a recursive problem
• Let's write a program to count the number of directories
• Starting at some point
• Here is the algorithm

  set a counter to 0
  get a list of all the entries in the current directory
  for each entry
      if the entry is a directory
          increase the count by 1
          run the function on this new directory
            and increase the count by what it returns
  return the count


• Here is the code

  def dir_count(path):
      count = 0
      entries = os.listdir(path)
      for entry in entries:
          entry_path = path + "/" + entry
          if os.path.isdir(entry_path):
              count += 1
              count += dir_count(entry_path)
      return count

Replacing Recursion with a Loop

• Anything that can be done with recursion
• Can also be done with a loop
• Recursive functions take more memory than loops
• Each time you make a recursive call
• The interpreter sets aside a bit of memory
• Which is only released when the function ends
• So why use recursion at all?
• Because it can save time when writing code
• It is often easier to create a recursive algorithm
• Than one that uses a loop
• Memory is relatively cheap
• And good programmers are expensive
• So it's often best to go with recursion

Calculating Factorials with a Loop

• It is very easy to calculate factorials with a loop
• Here is the algorithm

  set a factorial variable to 1
  set a count variable to 1
  while count is less than the number whose factorial we are computing
      increment count
      set factorial to count times the current value of factorial
  return the factorial value


• Turning this into Python code we get

  def factorial(number):
      value = 1
      count = 1
      while count < number:
          count += 1
          value *= count
      return value

• Calling the function, I get

  >>> print("5!:",factorial(5))
  5!: 120

Calculating Fibonacci Numbers with a Loop

• We can also calculate a Fibonacci number with a loop
• Here is the algorithm

  if the number is 1
      return 1
  else:
      set the first number variable to 0
      set the second number variable to 1
      set count to 1
      while count is less than the number
          increment count by 1
          set value to first number plus the second number
          set first to second
      set second to value
      return value


• Turning this into code, we get

  def fibonacci(number):
      if number == 1:
          return 1
      else:
          first = 0
          second = 1
          count = 1
          while count < number:
              count += 1
              value = first + second
              first = second
              second = value
          return value

• Compare this to the code for the recursive version

  def fibonacci(num):
      if num == 1 or num == 2:
          return 1
      else:
          return fibonacci(num - 1) + fibonacci(num - 2)

• The loop version is longer
• And it took me a long time to figure out

Direct versus Indirect Recursion

• Recursion is where something refers to itself
• The functions above refer to themselves directly
• This is called direct recursion
• But you can also have indirect recursion
• In indirect recursion something defines itself in term of something else
• And that something else defines itself using the original item
• So if function A called function B
• And function B called function A
• This would be an example of indirect recursion
• The can be any number of functions involved in indirect recursion
• So function A can call function B
• Which calls function C
• Which calls function D
• Which calls function A

Attendance

Class Exercise

Class Quiz
