Review

Placing Widgets in a Window

The programmer does not place widgets in a window
Tkinter handles this task with methods called layout managers
The are also called geometry managers
The code in these methods positions the widgets to best advantage
Tkinter provides three layout managers
- pack
- grid
- place
Every time you create a widget you must call a layout manager
If you don't ...
the Widget will not appear

The pack Layout Manager

The simplest layout manager to use is pack
To see how it works let's create an empty window
And then add a couple of labels using pack
The first window is very simple
IT has no widgets ...

so there is no object on which to call pack

from tkinter import *

class PackTestWindow:
    def __init__(self):
        self.root= Tk()
        self.root.title("Pack Test")
        mainloop()

root = PackTestWindow()

When I run this I get

Now let's add a label and pack it

from tkinter import *

class PackTestWindow:
    def __init__(self):
        self.root= Tk()
        self.root.title("Pack Test")
        self.l1 = Label(self.root, text="First label", fg="red")
        self.l1.pack()
        mainloop()

root = PackTestWindow()

When I run this I get

pack reduced the window to hold the label

Let's add another label

self.l2 = Label(self.root, text="Second label", fg="green")
self.l2.pack()

Now the window looks like this

Let's add one more label

self.l3 = Label(self.root, text="Third label", fg="blue")
self.l3.pack()

Here is the result

pack has a side named argument
side can have the following values
- top
- bottom
- left
- right

To align the buttons horizontally, I can write

self.l1 = Label(self.root, text="First label", fg="red")
self.l1.pack(side="left")
self.l2 = Label(self.root, text="Second label", fg="green")
self.l2.pack(side="left")
self.l3 = Label(self.root, text="Third label", fg="blue")
self.l3.pack(side="left")

The window now looks like this

The Frame Widget

A Frame is a container that can hold other widgets

Let's create a window with two frames

from tkinter import *

class FrameWindow:
    def __init__(self):
        self.root= Tk()
        self.root.title("Frame Test")
        self.top_frame = Frame(self.root)
        self.bottom_frame = Frame(self.root)
        self.top_frame.pack()
        self.bottom_frame.pack()

Note that the parent object for the frames is the root

We now create labels and attach them to the frames

        self.l1 = Label(self.top_frame, text="Red label", fg="red")
        self.l1.pack(side="top")
        self.l2 = Label(self.top_frame, text="Green label", fg="green")
        self.l2.pack(side="top")
        self.l3 = Label(self.top_frame, text="Blue label", fg="blue")
        self.l3.pack(side="top")
        self.l4 = Label(self.bottom_frame, text="Magenta label", fg="magenta")
        self.l4.pack(side="left")
        self.l5 = Label(self.bottom_frame, text="Cyan label", fg="cyan")
        self.l5.pack(side="left")
        mainloop()

root = FrameWindow()

When we run this, we see

The grid Layout Manager

grid works like a spreadsheet
It has cells specified by row and column numbers
Each widget is placed in one of these cells
The row and column numbers both start at 0
Each call to grid needs two values
- row
- column

Here is code with four labels laid out using grid

from tkinter import *

class GridWindow:
    def __init__(self):
        self.root= Tk()
        self.root.title("Grid Test")
        self.l1 = Label(self.root, text="Red", fg="red")
        self.l1.grid(row=0, column=0)
        self.l2 = Label(self.root, text="Green", fg="green")
        self.l2.grid(row=0, column=1)
        self.l3 = Label(self.root, text="Blue", fg="blue")
        self.l3.grid(row=1, column=0)
        self.l4 = Label(self.root, text="Magenta", fg="magenta")
        self.l4.grid(row=1, column=1)
        mainloop()

root = GridWindow()

root = GridWindow()

This is what we see when the code is run

If I change the width of the label by adding text
grid makes each column wide enough to hold the largest value

The Button Widget

A Button object can be connected to an action
The action happens when the button is clicked
The Button constructor has the following named arguments
- text - the button text
- command - the method run when the button is clicked
The value of command is usually a method name
But it can also be an action built in to the root object
Here is a simple program that creates a window with a single button

Clicking the button causes the program to quit

from tkinter import *

class ButtonWindow:
    def __init__(self):
        self.root= Tk()
        self.root.title("Button Test")
        self.button = Button(self.root, text="Quit",  command=quit)
        self.button.pack()
        mainloop()

root = ButtonWindow()

quit is a function that causes Tkinter to quit
When the code is run, a small window appears

When I click the button the window disappears

The messagebox Module

Messageboxes are windows used to tell something to the user
These objects are contained in the tkinter.messagebox module
There are a number of different types
- showinfo
- showwarning
- showerror
- askquestion
- askokcancel
- askyesno
- askretrycancel
The first three objects are similar
They each display some text in a window
The user has to click on the "OK" button to make them disappear

Here is an example

from tkinter import *
import tkinter.messagebox

class ButtonWindow:
    def __init__(self):
        self.root= Tk()
        self.root.title("Button Test")
        self.button  = Button(self.root, text="Click for showinfo box",  command=self.action)
        self.button.pack()
        mainloop()

    def action(self):
        tkinter.messagebox.showinfo("Show Info", "This is a message box created by showinfo")

root = ButtonWindow()

When run, a small window appears

When you click on the button, a dialog box appears

Clicking the "OK" button makes the box go away

Attendance

New Material

Making Things Happen in a Window

The method used by a button is called a callback function
Another name is an event handler
We usually have a button attached to a callback function
But they can be associated with other widgets
When a user clicks a button an event is created
But many other user actions create an event
Events occur when a user
- Presses a button
- Hits a key
- Moves the mouse
- Resizes a window
These events are created by the graphic component of the operating system

The Entry Widget

For most interactions with a user we need something more than a messagebox
We need something where a user can enter a value
This is the job of the Entry widget
This widget creates an rectangular area
When the user clicks inside this box they get a text insertion point ...
a little vertical line invites you to type something
Each Entry widget has a get method ...
which returns the text entered by the user
A typical program will have multiple Entry widgets ...
along with a button used to submit the data
The callback function will call the get method of each Entry widget

Converting Kilometers to Miles

Let's write a program that convert kilometers into miles
The conversion formula is
```
miles = kilometers * 0.6214
```
The app will have two frames
One for the Entry widgets
And the other for buttons

Here is the code

from tkinter import *
import tkinter.messagebox

class KilometersToMiles:
    def __init__(self):
        self.root= Tk()
        self.root.title("Kilometers to Miles")

        # top frame
        self.top_frame = Frame(self.root)
        self.prompt_label = Label(self.top_frame, text="Enter a distance in kilometers:")
        self.kilo_entry = Entry(self.top_frame, width=10)
        self.prompt_label.pack(side="left")
        self.kilo_entry.pack(side="left")
        self.top_frame.pack()

        # bottom frame
        self.bottom_frame = Frame(self.root)
        self.calc_button = Button(self.bottom_frame, text="Convert", command=self.convert)
        self.quit_button = Button(self.bottom_frame, text="Quit", command=self.root.destroy)
        self.calc_button.pack(side="left")
        self.quit_button.pack(side="left")
        self.bottom_frame.pack()

        mainloop

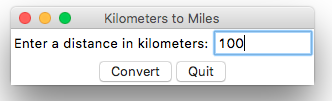

When you run this script, you get

The code in blue creates the Entry widget

The code in green creates the button that calls the following

def convert(self):
    kilo  = round(float(self.kilo_entry.get()), 2)
    miles = round(kilo * 0.6214, 2)
    tkinter.messagebox.showinfo("Results", \
                                str(kilo) + " kilometers is equal to " + \
                                str(miles) + " miles.")

root = KilometersToMiles()

This code first gets the the value from the kilo_entry widget
But the value is a string so it must be converted into a float
Now the converted value can be calculated ...
and displayed in a showinfo messagebox
When run, we enter a value for kilometers in the Entry widget

Click the Convert button

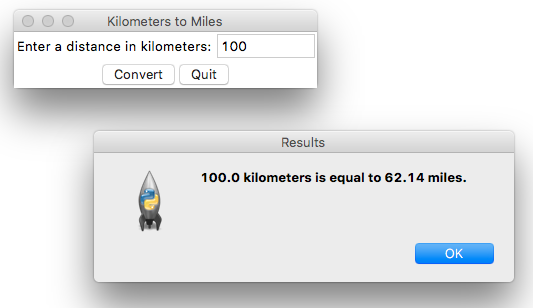

An a messagebox appears with the converted value

You can see the code for this script here.

Using Labels as Output Fields

A messagebox is not the best way to show the converted value
A better option would be to show it in the original window
We don't need a new widget to do this
We can use a Label widget for this purpose
You do this using a special type of Tkinter object
These objects allow you to pass a value to a widget
They come in four classes
- StringVar
- IntVar
- DoubleVar - holds a float value
- BooleanVar
A StringVar object passes a string value to a widget
An IntVar object passes an integer
And so on
You have to create one of these objects for each widget that gets a value
So how do you use such an object with a label?
A label is used to display text or a graphic
When we want a label to show a string ...
we use the text named argument in the constructor

Like this

self.label = Label(self.main_window, text="Hello, world!")

If instead we want the label to show the value of a variable ...
we first create an object of one of the classes mentioned above
Then you use the textvariable named argument of the constructor

Like this

self.miles = StringVar()
self.miles_label = Label(self.mid_frame, textvariable=self.miles)

When we do this, miles_label will show the value of the miles attribute
Let's modify the code above to have a label display the converted value

This will be done in a new middle frame

        # mid frame
        self.mid_frame = Frame(self.root)
        self.descr_label = Label(self.mid_frame, text="Converted to miles:")
        self.miles = StringVar()
        self.miles_label = Label(self.mid_frame, textvariable=self.miles)
        self.descr_label.pack(side="left")
        self.miles_label.pack(side="left")
        self.mid_frame.pack()

Now I have to change convert to give a value to miles

     def convert(self):
        kilo  = float(self.kilo_entry.get())
        miles = round(kilo * 0.6214, 2)
        self.miles.set(miles)

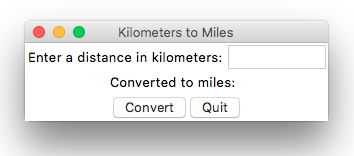

When run, the following appears

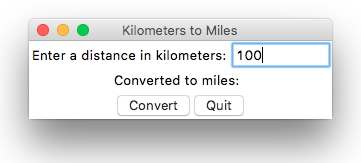

Now we enter a value in the input field

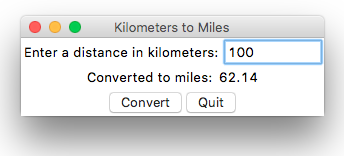

Then we click the Convert button

You can view the code here

Radio Buttons

An Entry object allows the user to enter a value as a string
But that value can be anything
So your program will have to check the value to see that it makes sense
This is called data validation ...
and it can involve writing quite a bit of code
But sometimes you only want the user to select a value ...
from a list of options
Radio buttons are a GUI device that presents the user with a list of values ...
and allows them to select one
If you click on one button and then another ...
the first button clicked becomes unselected
So radio buttons can only return one value
Tkinter has a RadioButton class
To use it you have to create one RadioButton object for each potential value
You must also create an object of one of the variable classes mentioned above
- StringVar
- IntVar
- DoubleVar
- BooleanVar
The constructor for a RadioButton has the following named arguments
- text - The label appearing to the right of the button
- variable - The variable object that will hold the value
- value - The choice assigned to that button
- command - A method that is called when the button is selected

A RadioButton Example

Let's say a user needed to chose a language from the following choices
- English
- Spanish
- French
- Arabic
We need to create a RadioButton object for each language choice

We create a Frame object to hold all the buttons

        self.top_frame = Frame(self.root)

Then create StringVar object to hold the value selected
```
        self.language_var = StringVar()
```
It is also a good idea to assign a default value to this object

We do this using the object's set method

        self.language_var.set('English')

Now we can create a RadioButton object for each choice

        self.rb1 = Radiobutton(self.top_frame, \
                               text="English', variable=self.language_var, \
                               value="English', command=self.show_choice)
        self.rb2 = Radiobutton(self.top_frame, \
                               text="Spanish', variable=self.language_var, \
                               value="Spanish', command=self.show_choice)
        self.rb3 = Radiobutton(self.top_frame, \
                               text="French', variable=self.language_var, \
                               value="French', command=self.show_choice)
        self.rb4 = Radiobutton(self.top_frame, \
                               text="Arabic', variable=self.language_var, \
                               value="Arabic', command=self.show_choice)

Each time a button is clicked, show_choice is run

Here is the code for this method

    def show_choice(self):
        language = self.language_var.get()
        self.value.set(language)

When we run this script we get

When you click on a radio button, the selected value appears

You can view the code here

Checkbuttons

Radio buttons only allow one choice
To allow the selection of multiple values you need check boxes
So Tkinter provides a Checkbutton class
Just as with a RadioButton object, you need a variable object
A RadioButton object needs only one variable object ...
but Checkbutton objects need one for each value
Another difference is the type of variable object
A RadioButton object can be associated with any variable type
A check box can really only have two values
On or off
So a BooleanVar object is a better choice for a Checkbutton object
The Checkbutton constructor takes the following named arguments
- text
- variable
- command

A Checkbutton Example

Let's create a script to select services from a small garage
- Oil change
- Inspection
- Tire rotation

First we create a BooleanVar object for each service

        self.cb_var1 = BooleanVar()
        self.cb_var2 = BooleanVar()
        self.cb_var3 = BooleanVar()

Then initialize each value to False

        self.cb_var1.set(False)
        self.cb_var2.set(False)
        self.cb_var3.set(False)

Now we can create three Checkbutton objects

        self.cb1 = Checkbutton(self.top_frame, text="Oil change', \
                               variable=self.cb_var1, command=self.show_choice)
        self.cb2 = Checkbutton(self.top_frame, text="Inspection', \
                               variable=self.cb_var2, command=self.show_choice)
        self.cb3 = Checkbutton(self.top_frame, text="Tire rotation', \
                               variable=self.cb_var3, command=self.show_choice)

We also need a frame to display the choices

 # bottom frame
        self.bottom_frame = Frame(self.root)
        self.choice_label = Label(self.bottom_frame, text='You chose:')
        self.value = StringVar()
        self.choice_value = Label(self.bottom_frame, textvariable=self.value)
        self.choice_label.pack()
        self.choice_value.pack()
        self.bottom_frame.pack(

Each of these Checkbutton object uses the same callback function

    def show_choice(self):
        choices = []
        if self.cb_var1.get():
            choices.append('Oil change')
        if self.cb_var2.get():
            choices.append('Inspection')
        if self.cb_var3.get():
            choices.append('Tire rotation')
        choice_list = ''
        for choice in choices:
            choice_list += choice + '\n'
        self.value.set(choice_list)

Here is what I get when I run the script for the first time

And here is what happens when I select different buttons

You will find the code here

Designing User Interfaces

When we write command line scripts the user interface is simple
We get input from the command line ...
and then print the results to the screen
But when you create graphic programs things get more complicated
Command line programs are usually run by technical people ...
who are not frightened by the command line
But graphical programs are usually created for a more general audience
Creating a good user interface design for such a program is not easy
It's almost more art than science
You need to know quite a bit about the psychology of perception
That is why most organizations hire special programmers for the user interface
It is easy to create a bad user interface
And very hard to create a good one

Contract for the Web
